Neutrik NC3MXX-B
3 Pin Male XLR Cable Connector in Black with Gold Contacts

OUR PART #:  NC3MXX-B

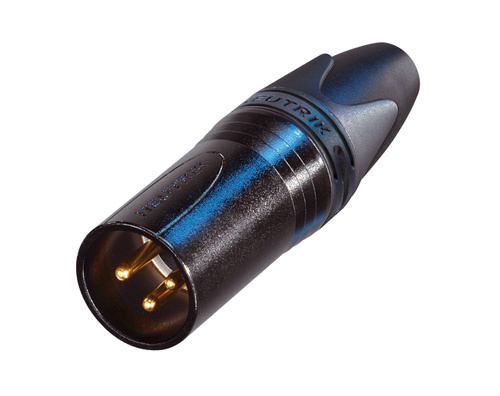

The Neutrik NC3MXX-B is a male 3-pole XLR cable connector with black metal housing and gold contacts.
Learn More
Our Price: $3.60
List Price: $4.88
Save up to 38% when you order by quantity!
  • Buy 25: $3.25 each.
  • Buy 50: $3.14 each.
  • Buy 100: $3.02 each.

5.0 / 5

★★★★★ 3 Reviews. Write Yours

Related Products

The Neutrik NC3MXX-B is a male 3-pole XLR cable connector with black metal housing and gold contacts.

Neutrik NC3MXX-B Features:

  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available (sold separately) for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable
  • Internal thread on shell is well proteced against any damage
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product

Neutrik NC3MXX-B Specifications:

Electrical Specifications:

  • Capacitance between contacts: </= 4 pF
  • Contact resistance: </= 3 mOhm (inner)
  • Dielectric strength: 1.5 kVdc
  • Insulation resistance: > 10 GOhm (initial)
  • Rated current per contact: 16 A
  • Rated voltage: 50 V

Mechanical Specifications:

  • Cable O.D.: 3.5 - 8.0 mm
  • Insertion force: </= 20 N
  • Withdrawal force: </= 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 2.5 mm²
  • Wiresize: max. 14 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock

Material Specifications:

  • Boot: Polyurethane
  • Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Zinc diecast (ZnAl4Cu1)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Black chromium
  • Strain relief: Polyacetal (POM)

Environmental Specifications:

  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
