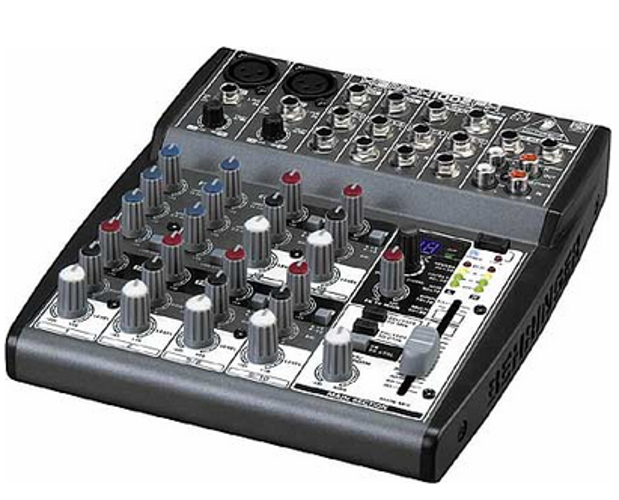

Behringer XENYX-1002FX
Mixer, 10-Input, 2-Buss, with Digital Effects


From bare-bones rock n' roll to a mellow folk ensemble, the 10-input...
Learn More
Our Price: $89.99
List Price: $134.99
You save 33%!
Write the first review.
Behringer XENYX-1002FX
In Stock

Related Products

From bare-bones rock n' roll to a mellow folk ensemble, the 10-input, two-bus XENYX 1002 can give an intimate performance the vibe it needs to sound great in the crowd as well as on record. It's simple to transport, simple to use and simply essential.

The XENYX 1002 has two XENYX mic preamps with +48 V phantom power, making it possible to use two dynamic or condenser microphones. The three-band British EQ ensures warm, musical sound. Simple controls with rich musicality make it possible to create beautiful mixes with minimal technical expertise. Play music between sets via the RCA CD/tape inputs (assignable to main mix or control room/phones outputs) and record your performance to an outboard recording device via the RCA outputs. Add some outboard digital magic to your sound using the FX SEND. Simply connect an outboard device to apply effects such as reverb or delay.

Weighing in at just 2.3 pounds (1.05 kg), the XENYX 1002 is the portable, practical way to turn a small performance with two vocalists into an arresting sonic spectacle. Lending optimum sound quality to small-scale performances has never been this easy or affordable. The XENYX 1002 provides incredible versatility at a price other mixers in this class simply cannot touch.

Behringer XENYX-1002FX Features:

  • Premium ultra low-noise, high headroom analog mixer
  • 2 state-of-the-art XENYX Mic Preamps comparable to stand-alone boutique preamps
  • Neo-classic "British" 3-band EQs for warm and musical sound
  • Studio-grade 24-bit stereo FX processor with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
  • FX send control per channel for internal FX processor and/or as external send
  • Main mix outputs plus separate control room, phones and stereo CD/tape outputs
  • CD/tape inputs assignable to main mix or control room/phones outputs
  • Long-wearing 60-mm logarithmic-taper fader and sealed rotary controls
  • High-quality components and exceptionally rugged construction ensure longlife
  • Conceived and designed by BEHRINGER Germany

Behringer XENYX-1002FX Specifications:

Mono Inputs

Microphone Inputs (XENYX Mic preamp): XLR connector, electronically balanced, discrete input circuit

  • Mic E.I.N. (20-20kHz):
    • @ 0 Ohms souce resistance: -134dB/ 135.7dB A-weighted
    • @ 50 Ohms source resistance: -131dB/ 133.3dB A-weighted
    • @ 150 Ohms source resistance: -129dB/ 130.5dB A-weighted
  • Frequency Response:
    • <10Hz - 150 kHz: -1dB
    • <10 Hz - 200 kHz: -3dB
  • Gain Range: +10dB to +60dB
  • Max Input Level: +12dBu @ +10dB GAIN
  • Impedance: ~ 2.6kOhms balanced
  • S.N. Ratio: 110/dB/ 112dB A-weighted (0 dBu in @+22dB GAIN)
  • Distortion (THD+N): 0.005%/ 0.004% A-weighted

Line Input

  • Type: 1/4" TRS jack, electronically balanced
  • Impedance: approx. 20 kOhms balanced, approx/ 10kOhms unbalanced
  • Gain Range: -10dB to +40dB
  • Maximum Input Level: +22 dBu
  • Fade-OutAttenuation (Crosstalk attenuation):
    • Main Fader closed: 90dB
    • Channel muted: 89.5dB
    • Channel fader muted: 89dB
  • Frequency Response (Mic In -> Main Out)
    • <10 Hz - 90kHz: +0dB/ -1dB
    • <10 Hz - 160 kHz: +0dB/ -3 dB

Stereo Inputs

  • Type: 1/4" TRS jack, electronically balanced
  • Impedance: ~ 20kOhms
  • Max. Input level: +22dBu


  • EQ Mono channels:
    • LOW: 80Hz/ +- 15dB
    • MID: 2.5kHz/ +- 15dB
    • HIGH: 12kHz/ +- 15dB
  • EQ Stereo channels:
    • LOW: 80Hz/ +- 15dB
    • MID: 2.5kHz/ +- 15dB
    • HIGH: 12kHz/ +- 15dB

Aux Sends

  • Type: 1/4" TS jack, unbalanced
  • Impedance: ~120Ohms
  • Max. output level: +22 dBu

Stereo Aux Returns

  • Type: 1/4" TRS jack, electronically balanced
  • Impedance: ~ 20kOhms balanced/ ~10kOhms unbalanced
  • Max. Input level: +22dBu

Main Outputs

  • Type: 1/4" TRS jack, unbalanced
  • Impedance: ~120 Ohms unbalanced
  • Max. Output Level: +22 dBu

Control Room Outputs

  • Type: 1/4" TS jack, unbalanced
  • Impedance: ~120Ohms
  • Max. Output Level: +22dBu

Headphones Output

  • Type: 1/4" TRS jack, unbalanced
  • Max. output level: +19dBu/ 150Ohms (+25 dBm)


  • Dimensions (H x W x D): 1.9"/1.5" x 7.4" x8.7" (47mm/ 37mm x 189mm x 220mm)
  • Weight:  2.3 lbs. (1.05kg.)
