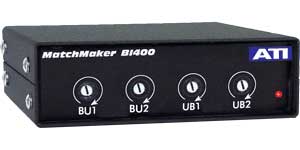

Audio Technologies Inc. BI400
IHF to PRO, 4 Channel INterface Converter with RCA to XLR

OUR PART #:  BI400

The Audio Technologies Inc BI400 is an interface amplifier designed to interconnect consumer grade and semi-professional equipment into professional, balanced...
Learn More
Our Price: $369.66
List Price: $379.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Audio Technologies Inc. BI400
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Audio Technologies Inc BI400 is an interface amplifier designed to interconnect consumer grade and semi-professional equipment into professional, balanced, low impedance audio systems.

The BI400 is a bi-directional stereo interface, which bridges a stereo pair of professional 600 ohm balanced or unbalanced +4dBm lines and converts those signals to a nominal .25 volt IHF level (-10dBu). The IHF output can feed, for example, the record inputs of a consumer grade cassette or DAT recorder. Simultaneously the BI400 also converts the unbalanced, high impedance, stereo, .25-volt IHF playback outputs from the tape deck to a +4dBm output capable of driving balanced or unbalanced lines of 600 ohms or greater line impedance.

Audio Technologies Inc BI400 Features:

  • Quiet, external UL approved 24VDC wall mount power
  • Gold plated RCA type phono jacks
  • Stackable as two or three
  • Separate LEDs for each 1X4 channel indicate either output clipping(standard) or input signal presence (special order -S)

Audio Technologies Inc BI400 Specifications:

  • Gain: -14dB nominal, -8dB maximum. +14dB nominal, +22dB maximum. User adjustable for -10dBu (.25V), User adjustable to 0, +4 or +8dBm output with 0, +4 or +8dBm inputs output with -10dBu (.25V) input.
  • Nominal Levels: +4dBm input, -10dBu (.25V) out -10dBu (.25V) in, +4dBm out
  • Peak Levels: +22dBm in, +8dBu (2.0V) out +8dBu (2.0V in), +22dBm out
  • Noise: 20kHz B.W.: -90dBu maximum output -80dBm maximum output
  • Harmonic Distribution: .02% Max at Peak Level .02% max. at Peak Level 20Hz to 20kHz .005% max. at Nominal Level .005% max. at Nominal Level
  • Frequency Response: +.25dB, 20 to 20,000Hz +.25dB, 20 to 20,000 Hz
  • Crosstalk: 70dB minimum at 10kHz 70dB minimum at 10kHz
  • Input Impedance: Balanced, 20kohm bridging Unbalanced 10,000 ohms
  • Output Impedance: Unbalanced, 1500 ohms max. Zs. Balanced, 40 ohms maximum
  • Dimensions: 1.5" H x 5.5" W x 5.75" D
  • Weight: 1.5 lbs net
  • Connectors: XLR (balanced input/outputs) & RCA phono jacks (unbalanced input/outputs)
  • Power: 24VDC @ .07A, Connector sleeve
  • Power Supplies: All units require 24VDC power supply, which is ordered separately. They can share a single supply-using loop thru DC cable (P/N 20602-1). Do not exceed rated supply current
  • Warranty: Limited, one year
