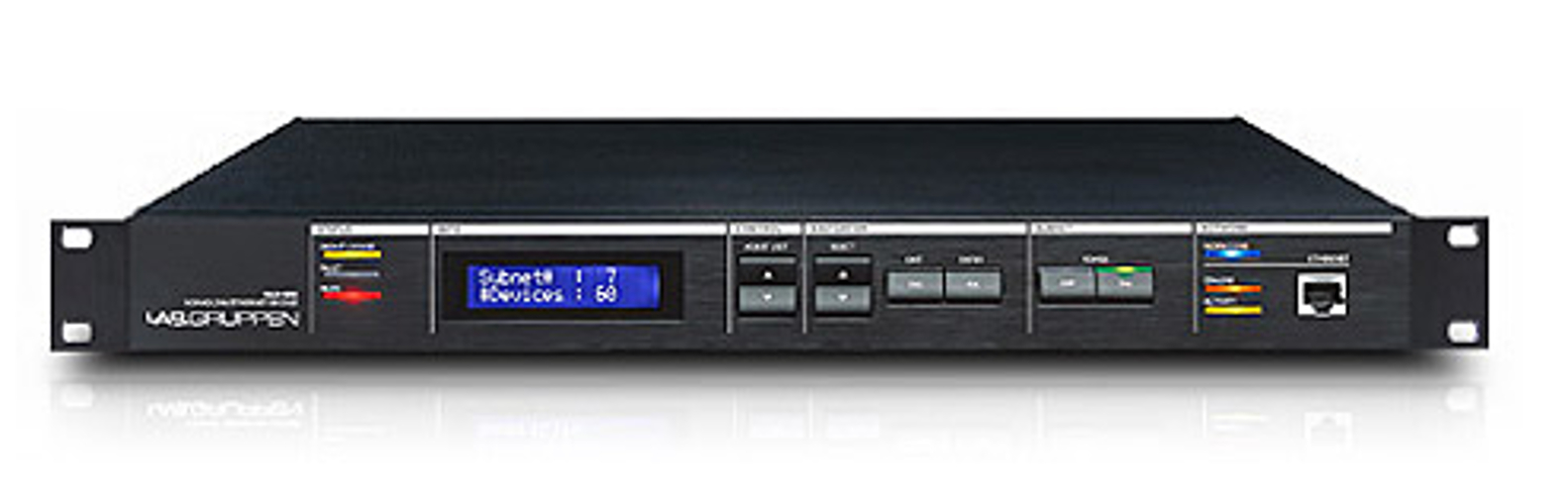

Lab Gruppen NLB 60E
NomadLink Network Bridge

OUR PART #:  NLB60E

The NomadLink network provides remote monitoring, control and power sequencing functions for multiple C Series or FP+ amplifiers.
Learn More

Call for price! Not available online.

Similar Products

The NomadLink network provides remote monitoring, control and power sequencing functions for multiple C Series or FP+ amplifiers. Indeed up to 16 NLB 60E network bridges, each monitoring up to 60 amplifiers may be accommodated in one system. Easy setup, redundancy, and minimum maintenance were bywords when developing this network format.

NomadLink is a closed-loop, daisy-chained network topology with the NLB 60E providing the bridge to the familiar world of Ethernet/LAN. NomadLink reduces installation time and cost significantly, includes redundancy during operation by design and simplifies the location of faults or system abuse.

NomadLink together with the associated DeviceControl software allows the subnets’ architecture to be automatically uploaded even without individual IP addresses in the amplifiers. All in all, it is the fastest and easiest monitoring and control network on the market today.

Lab Gruppen NLB 60E Specifications:

  • Network Connectors:
    • Nomadlink Out: EtherCon housed RJ45
    • Nomadlink In: EtherCon housed RJ45
    • Ethernet rear-panel: EtherCon housed RJ45
    • Ethernet front-panel: Standard RJ45
  • General Purpose Inputs (GPI):
    • One Voltage sensing input:Two pole Phoenix
    • Two contact closure inptus: Two pole Phoenix
  • Front Panel Indicators:
    • Front operation locked: Yellow LED
    • Fault warning: Red LED
    • Amplifier subnet muted: Red LED
    • NomadLink network connected/activity:Blue LED
    • Ethernet connected: Orange LED
    • Ethernet Activity: Yellow LED
  • 2 x 16 Character display: White text, Blue background
  • Navigation and Adjust keys: Yes, x 6
  • Subnet Power on/off keys: Yes, x 2
  • Power: 100 to 240 VAC, 50 to 60 Hz (auto-select)
  • Power consumption: < 20 W
  • Finish: Anodized aluminum front, Plated and paintedsteel chassis
  • Approvals: CE, CSA
  • Dimensions (W x H x D): 19" x 1.73" x 8.2" (483 x 44 x208 mm), 1 RU
  • Weight: 5 lbs. (2.25 kg)
