Roland System Group S4000R
Digital Snake Remote Control, 3m, RS232C Cable

OUR PART #:  S4000R

The S-4000R is a component of the S-4000 Digital Snake System.
Learn More
Our Price: $395.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Roland System Group S4000R
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

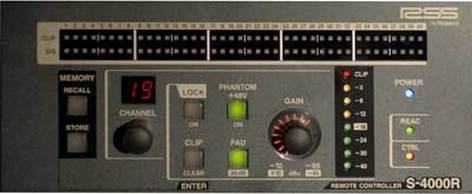

The S-4000R is a component of the S-4000 Digital Snake System. It allows for zipperless remote control of preamp levels for an S-4000S-3208 or any other system source configuration up to 40 channels. It can also switch Phantom Power and Pad settings for individual channels. The remote controller can store 9 presets including all of the channel gain and other settings. This allows for fast changes from act to act in a festival and an easy way to return to defaults in an installation.

The S-4000R is typically used at the Front of House console position but can also be used at the Stage position. When a system has two remotes, only one can be active at any time. If the Stage remote is in use, then the FOH unit will be automatically put in a Lock mode. If the FOH operator would like to use the remote, the Lock button is pressed to unlock the remote for use at the FOH position.

The S-4000R is very easy to use. A channel is selected using the channel Dial and then the Gain, Phantom Power and Pad settings can be changed. There is a high res LED Level Meter for the selected channel. There also are indicators showing signal present for each channel. If any channel is clipped, a clip light is shown for that channel and the master Clip button is lit. Pressing the Clip button clears the clip level LEDs. Odd/Even channels can be linked for fast changes to stereo sources.

The S-4000R connects using the provided RS-232c cable. It can be used on top of a console, or rack mounted using the included rack mount kit.

The RSS S-4000R offers a very easy way to control the gain structure and channel settings for an S-4000 Modular Digital Snake, an essential feature of any digital snake system.

Roland S4000M Features:

  • Zipperless remote control of channel gain for an S-4000 Modular Digital Snake
  • Controls Channel Gain, Pad and Phantom Power for each individual channel
  • 9 Preset memories of all system settings for fast system setup or return to system default settings
  • Odd/Even channel linking for easy adjustments to stereo sources
  • Signal present and clipping indicator for each channel
  • Hi res selected channel meter display
  • Can be used at FOH location or on Stage
  • Rack mount or table top operation using included RS-232c cable

Roland S4000M Specifications:

  • Remote Connector: 1 (RS-232C, DB-9 type)
  • Power Supply: Supplied from connected device (S-4000S, S-4000H; through the remote cable)
  • Indicators: CLIP 1-40, SIG 1-40, POWER, REAC, CTRL, Level
  • Memory: 10 memories
  • Dimensions (W x D x H): 8.6" x 3.4" x 2.15"
  • Weight: 1.75 lbs
  • Accessories: Remote Cable (3 meter), Owner's Manual
