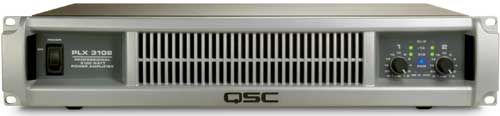

QSC PLX3102 2-Channel Power Amplifier, 1000W at 4 Ohm, PowerLight

OUR PART #: PLX3102 MFR #: PLX3102

Copied to clipboard

The compact PLX3102 two-channel 3100W power amplifier is for users who need to drive up to four loudspeakers from each amplifier channel (2 Ω loading)... ...Read more

QSC PLX3102 2-Channel Power Amplifier, 1000W At 4 Ohm, PowerLight Image 1
QSC PLX3102 2-Channel Power Amplifier, 1000W At 4 Ohm, PowerLight Image 2
QSC PLX3102 2-Channel Power Amplifier, 1000W At 4 Ohm, PowerLight Image 3
OMCat382UWc
1 Video
QSC PLX3102 2-Channel Power Amplifier, 1000W At 4 Ohm, PowerLight
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The compact PLX3102 two-channel 3100W power amplifier is for users who need to drive up to four loudspeakers from each amplifier channel (2 Ω loading), or when extremely high power bridge mono operation is required. Features built-in subwoofer processing, filter switches and front panel indications of bridge mono status. A solid, cast-aluminum front panel adds professional style to any rack while also acting as an integral I-beam, rigidly tying the chassis together for years of on-the-road reliability. PowerLight switchmode technology replaces a large, heavy AC transformer with a highly efficient and lighter-weight active design. Conventional AC transformers provide 60 energy pulses per second. The PowerLight supply delivers 100,000 pulses per second. More pulses make it easier to provide on-demand power for the amplifier's output section. The power supply doesn't "sag" so bass notes stay full and powerful while the high end remains crisp and clean. PLX2 audio power circuitry achieves performance normally associated with studio reference amplifiers. In order to reduce crossover distortion, precision bias tracking makes minute adjustments as amplifier temperature changes. The benefit is cleaner high-frequency and more consistent sound no matter how hard the amplifier is driven. The higher power models use QSC exclusive class H output circuitry, a form of audio "turbocharging" that increases maximum power without affecting the basic audio quality.

Features

  • 3100W @ 4 Ω bridged, 600W @ 8 Ω stereo
  • Cooling design exhausts hot air out the front
  • Front-panel LED power, clip, -10 dB, and signal present indicators
  • Two speakON® NL4 output connectors
  • 21-position front-panel gain controls

Specifications

  • Power Output:
    • 8 Ω, stereo: 600W
    • 4 Ω, stereo: 1000W
    • 2 Ω, stereo: 1550W
    • 8 Ω, bridged: 2100W
    • 4 Ω, bridged: 3100W
  • Signal to Noise (20 Hz - 20 kHz): -107 dB
  • Input Sensitivity @ 8 Ω: 1.23 V rms
  • Gain @ 8 Ω: 35 dB
  • Output Circuitry: 2-Step Class H
  • Distortion (SMPTE-IM): less than 0.02%
  • Typical Distortion: less than 0.02%
  • Frequency Response: 20 Hz - 20 kHz, -0.5 dB
  • Damping Factor: Greater than 500
  • Input Impedance: 20 kΩ balanced, 10 kΩ unbalanced
  • Input Clipping: 11 V rms (+21 dBu)
  • Cooling: Variable-speed fan, rear-to-front air flow
  • Input Connectors, each channel: 3-pin XLR and 1/4" TRS balanced
  • Output Connectors, each channel: Neutrik NL4 speakON and touch-proof binding posts (both channels available on Ch 1 output)
  • Rear Panel Switches: Input Configuration: Bridge/Stereo/Parallel, Clip Limiters each channel, Filters (per channel): Top 100 Hz HPF/Full/Sub 100 Hz LPF and 33 Hz HPF/Full (infrasonic)
  • Front Panel Controls: Detented Input Attenuator: 0 to infinity dB, Power On/Off
  • Front Panel Indicators: Clip: Red LED; -10: Green LED; Signal (-35 dB):Green LED; Power: Blue LED; Parallel: Amber LED; Bridge mono: Amber LED
  • Protection:
    • Amplifier Protection: Full short circuit, open circuit, thermal, infrasonic, ultrasonic, and RF protection; Stable into reactive or mismatched loads
    • Load Protection: On/off muting, DC-fault power supply shutdown
    • Infrasonic: -3 dB, 5 Hz
    • DC fault: Power supply shutdown
    • Ultrasonic: -3 dB, 85 kHz
    • Short Circuit: Cutback
    • Thermal: Muting at 90°C
    • Over Current: Active clip limiting; Power Supply Cutback
    • High Line: Standard +15%, survive +25%
    • Low Line: -33%
  • Physical:
    • Dimensions (H x W x D): 3.5" x 19" x 12.8", 2U
    • Overall Depth: 14.875"
    • Weight: 21 lbs. (net); 26 lbs. (shipping)
    • Agency Approvals: CCC, CB, CE FCC, KETI, cUL, UL
