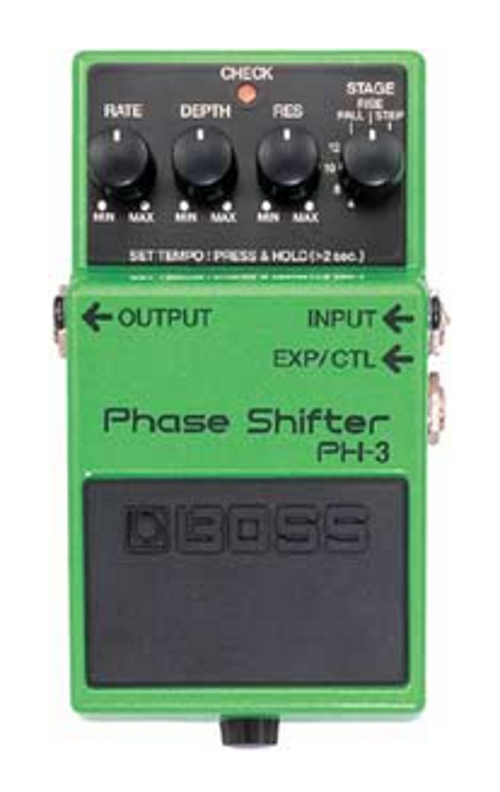

Boss PH3-BOSS Phase Shifter

Vintage BOSS phasing effects including 4-, 8-, 10-, and 12-stage phasers, plus new "Rise" and "Fall" effects for unidirectional phasing. Tap tempo sync or realtime control of rate via an Expression/Pedal input.

Boss PH3 Specifications:

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohms
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohms
• Recommended Load Impedance: 10 k ohms or greater
• Residual Noise Level: -92 dBu (IHF-A, Typ.)
• Connectors: INPUT Jack, OUTPUT Jack, EXP/CTL Jack, AC Adaptor Jack (DC 9 V)
• Power Supply: DC 9 V: Dry Battery 9 V type (6F22/9V), AC Adaptor
• Current Draw: 50 mA (DC 9 V)
• Accessories: Dry Battery 9 V type (6F22/9 V)
• Options: AC Adaptor (PSA-Series), Expression Pedal (Roland EV-5), Footswitch (FS-5U)
• Dimensions (WxDxH): 2 7/8" x 5 1/8" x 2 3/8"
• Weight: 15 oz
