Nexo LS400-SUB 12" Subwoofer for PS8

OUR PART #: LS400-SUB

Copied to clipboard

The LS400 Subwoofer extends the usable range of a PS8 System to 40Hz, providing 131dB Peak SPL in an extremely compact, lightweight package. ...Read more

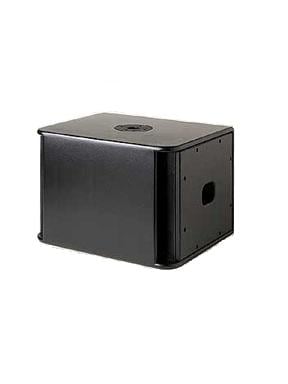

Nexo LS400-SUB 12" Subwoofer For PS8 Image 1
Nexo LS400-SUB 12" Subwoofer For PS8
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The LS400 Subwoofer extends the usable range of a PS8 System to 40Hz, providing 131dB Peak SPL in an extremely compact, lightweight package. The new NEXO-designed shielded neodymium 12" driver makes the LS400 usable next to sensitive video equipment. The PS8 TD controller's integral sub section and combined signal (PS8 and LS400) Speakon wiring ensure cost effective and simple system implementation. One LS400 is typically used with 2x PS8 loudspeakers. Additional LS400's may be used for greater low frequency output.

Features:

  • High power system (131dB Peak SPL @ 1m)
  • The light-weight, 14.6kg(32lbs, 12" VLF neodymiumdriver displays low-magnetic emission and creates negligible magnetic leakage
  • Extends VLF of PS8 Loudspeakers to 40Hz
  • Integral pole mount that supports 1x or 2x PS10Loudspeakers
  • Sophisticated control electronics ensure reliable, linear operation

Specifications:

  • Components: 12" Shielded Neodymium long excursion 6ohm driver
  • Dimensions (HxWxD): 13-1/4" x 19-5/8" x 16"
  • Weight: 32 lbs. Net
  • Connectors: 2 x NL4MP SPEAKON 4-pole
  • Construction: Baltic Birch Ply & textured,polyurethane black coating
  • Frequency Response: 43 Hz – 120 Hz +/- 3dB
  • Usable Range @ -6dB: 40 Hz – 140 Hz
  • Sensitivity (1W @ 1M): 99dB SPL Nominal
  • Nominal Peak SPL @ 1M: 128 to 131 dB
  • Crossover Frequencies: 120 Hz Active through PS8TD
  • Nominal Impedance: 6 ohms
  • Recommended Amplifiers: 300 to 700 Watts into 4 ohms
