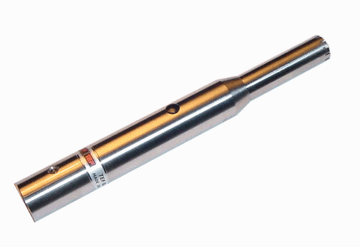

Goldline TEF04P Phantom Powered Omnidirectional Electret Condenser Microphone

Goldline's TEF04 is a omni directional, 1/2" diameter, electret condenser microphone suitable for general purpose acoustical measurements and professional audio applications where a free-field omni pattern is specified. The TEF04 provides levels of accuracy that meet the frequency response specifications of Goldline's more expensive titanium diaphram TEF05A mics, while providing the ruggedness of a mylar diaphram for field use. The mic circuit has been designed to operate on phantom voltages from the 12VDC utilized by many RTA's to the 48VDC provided by mixing consoles and devices such as the TEF25 analyzer. The precision machined stainless steel body provides exacting dimensions suitable for use with Acoustic Calibrators.

Features:

• Instrument/calibration quality microphone
• Ideal for certain studio and live recording applications
• Use with Gold Line DSP series and TEF Acoustic Analyzers
• Supplied as standard in ProKIT Measurement Systems
• Fits standard 1/2" calibrators
• Small omnidirectional capsule
• Accurately captures sonic events

Specifications:

• Cartridge Type: Omni-directional condenser
• Sound Input: 123dB SPL maximum
• Output: 3-pin XLR male (Pin 1 - ground, pin 2 - hot, pin 3 - neutral)
• Frequency Response:
• - 20Hz - 15kHz ± ½ dB
• - 15kHz - 20kHz ±1dB
• Open Circuit Sensitivity: 9.1mV/Pa
• Impedance: 20 ohm
• Power Requirements: 12-48Vdc phantom
• Size: 6-1/4" L x 3/4" diameter body, 1/2" capsule housing
• Weight: 5 oz.
• Housing Material: Stainless Steel
• Supplied with foam-padded carry case, mic clip, windscreen, frequency plot & serial number
