Kramer VA-8XL
8 Channel Balanced Stereo Audio Amplifier

OUR PART #:  VA-8XL

The Kramer VA-8xl/VA-16xl are high performance 8/16 channel balanced stereo audio amplifiers, designed for professional and high-end consumer audio systems.
Learn More
Our Price: $956.00
List Price: $1,195.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Kramer VA-8XL
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

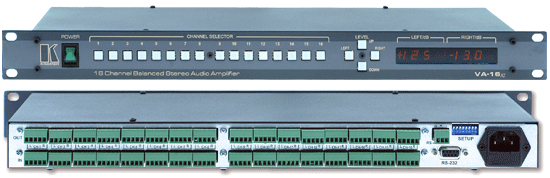

The Kramer VA-8xl/VA-16xl are high performance 8/16 channel balanced stereo audio amplifiers, designed for professional and high-end consumer audio systems. They feature a digitally controlled volume function from – 95dB attenuation up to + 31dB gain (amplification): in steps of 0.5dB. The gain setting is implemented during the "zero crossing" of the input signal, thus providing a noise-free transition without audible glitches, even at maximum gain settings. Outstanding audio specifications ensure that the VA-8xl/VA-16xl remain transparent even in the most critical broadcast applications. The amplifier gain of the Left and Right channels may be controlled together or separately, via front panel pushbuttons, remotely via RS-232, and via an RS-485 interface. Up to 15 machines can be daisy-chained in a single system using RS-485 or RS-232, allowing control of up to 240 stereo audio channels! The gain of the selected channel is shown on a bright 7-segment LED display on the front panel. Both machines are housed in a rugged, professional 1U rack mountable enclosure and ship with Windows®-based software.



Specifications:

  • Inputs:   8 balanced stereo audio + 4dBm/30kO on detachable terminal blocks.
  • Outputs:   8 balanced stereo audio + 4dBm/50O on detachable terminal blocks.
  • Gain:   - 95dB to + 31dB.
  • Max. Bandwidth Level:   > 20dBm balanced (THD + N < 0.01).
  • Bandwidth ( - 3dB):   20Hz to 40kHz.
  • Noise Floor:   < 90dB (Gain 0dB).
  • THD + Noise:   0.006% @ 4dBm 1kHz.
  • Control:   Front pushbuttons, RS-232, and RS-485.
  • Indicators:   Gain in dB for left and right channels.
  • Power Source:   90 - 240V 13VA.
  • Dimensions:   19-inch (W), 7-inch (D) 1U (H) rack-mountable.
  • Weight:   7.8lbs (3.5kg) approx.
  • Accessories:   Power cord, Null modem adapter, Windows®-based control software.
