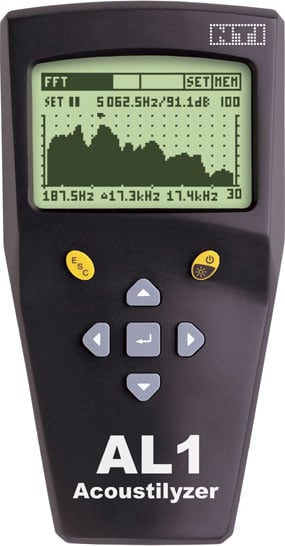

NTI AL1
Acoustilyzer Analyzer

OUR PART #:  AL1-NTI

AL1 Acoustics and Audio Analyzer provides both audio and acoustical measurements, analysis and monitoring. Palm-sized and batter powered.
Learn More
NTI AL1-NTI 1
NTI AL1-NTI 2
NTI AL1-NTI 3
NTI AL1-NTI 4

Click a thumbnail to see more images. (6 total)

Our Price: $1,073.07
List Price: $1,075.00
Write the first review.
NTI AL1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

AL1 Acoustics and Audio Analyzer provides both audio and acoustical measurements, analysis and monitoring. Palm-sized and batter powered. Used with the required MiniSPL microphone to measure SPL, 1/3 Octave SPL, RT60, delay time, FFT and optional Speech Intelligibility (STI-PA) measurements.

AL1 measures:

  • Sound pressure level (SPL) & time-averaged soundpressure level (LEQ) in conjunction with optional MiniSPL microphone
  • Real time analysis of wideband, octave or 1/3 octaveSPL; including Min/Max readings mode
  • RT60 reverberation time with octave band resolution
  • Real time high resolution spectrum analyzer using zoomFFT
  • Polarity measurement
  • Delay time measurements
  • Audio analyzer measuring THD+N, Level, Frequency
  • Filters: Flat, A-weighted, C-weighted, X-Curve andHighpass (400Hz, 19KHz)  filters
  • Connector or cable test with Signal Balance Indicator
  • Speech intelligibility measurement (with STI-PAoption)
  • Includes CD with test signals; and works with optional MR1 Minirator forsome measurements

Includes MiniLINK PC Interface.  Requires optional MiniSPL.

Inputs: RCA (unbalanced), XLR (balanced)

Accessories: MiniSPL; -20 dB adapter; Minstruments soft pouch or Minstruments soft pouch with microphone holder; Minstruments system case; NTI TalkBox

Options: STI-PA Speech Intelligibility; AL1 to ML1 Crossgrade option
