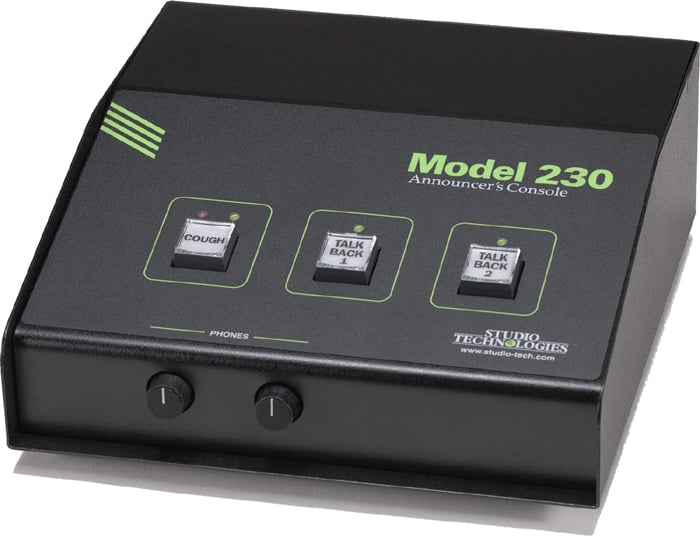

Studio Technologies MODEL-230
Announcer's Console

OUR PART #  MODEL-230

Our Price: $1,086.24
List Price: $1,095.00
(Low Price Guarantee)
In Stock

Recommended Accessories

The Model 230 Announcer's Console is a powerful audio control "hub" for announcers, commentators, and production personnel. Compatible with essentially all broadcast and production audio system environments, the tabletop unit is well suited for on-air television and radio broadcast, and live-event production.

Flexible Setup
Three pushbutton switches—Main, Talkback 1, and Talkback 2—operate under microprocessor control to offer unmatched flexibility and "click-free" audio routing. The Main button controls the main output with operating modes that include push-to-mute (cough), push-to-talk, and latching. The Talkback 1 and Talkback 2 buttons can be configured to route to one of three locations: intercom channel 1, intercom channel 2, or a line-level talkback output. For non-on-air applications a special feature set referred to as "production" mode can be enabled. Simple customization of the button labels ensures the user is presented with an easy-to-use set of controls and indicators.

Superior Audio
Featuring a studio-inspired low-noise/low-distortion preamplifier design, adjustable gain, and 48 volt phantom power, the Model 230 is compatible with balanced dynamic and condenser microphones. With high output capability and the use of an output transformer expressly designed for professional audio applications, the main output offers broadcast-quality audio as the on-air, stadium announcement, or other primary audio feed.

Powerful Monitoring
The headphone output's circuitry provides high output levels with very low distortion and noise. The user can monitor up to six external audio sources: IFB channel 1, IFB channel 2, line input 1, line input 2, intercom channel 1, and intercom channel 2. Possible signal sources for the line-level inputs include off-air receivers, wireless IFB systems, and audio consoles. The Model 230's intercom interface is compatible with standard party-line intercom systems from manufacturers such as RTS™ and Clear-Com®. Each source can be individually assigned to the left, right, or both channels of the binaural headphone output. Two rotary controls allow the user to adjust the headphone output levels. Studio Technologies' unique "auto-terminate" feature ensures talkback-to-intercom "squeal" will never occur in the headphone output if an intercom line is disconnected.

Features:

  • Microphone preamp with selectable gain and 48 volt phantom power
  • Two line-level inputs
  • Broadcast IFB input
  • Three pushbutton switches offer programmable "click-free" audio path control
  • Transformer-balanced main output
  • Line-level talkback output
  • Dual-channel intercom interface with "auto-terminate"
  • Stereo headphone monitoring of selectable sources
  • Two rotary headphone output level controls
  • Microcontroller-directed audio routing
  • Auxiliary relay contacts
  • Powered by intercom, IFB, or by external DC source
  • All configuration switches and trim potentiometers accessible via thebottom of the enclosure

Specifications:

General Audio:
Frequency Response: 20 Hz-20 kHz, ±0.1 dB, mic in/main out
Distortion (THD+N): 0.008%, measured at 1 kHz, mic in/main out
S/N Ratio: 80 dB, referenced to –46 dBu mic in/–2 dBu main out

Connectors:
Mic In, Line In 1 & 2, IFB In, Intercom Interface: 3-pin female XLR-type
Main Out, Talkback Out: 3-pin male XLR-type
Headphone Out: ¼-inch 3-conductor phone jack
24 Vdc Power In: 2.1 x 5.5 mm coaxial power jack

Spare Connector Locations: 3
Allows up to three Neutrik NC*D-L-1 connectors to be installed (*=3F, 3M, 5F, 5M, 6F, 6FS, etc.)

Microphone Input/Preamplifier:
Type: electronically balanced
Input Impedance: 2 k ohms
Gain Range: 20 to 60 dB, adjustable in 10 dB steps
Compatibility: dynamic or phantom-powered mics
Phantom Power: 48 Vdc, nominal, meets IEC 61938

Compressor:
Threshold: 2 dB above nominal level
Attack/Release Time: 2 mSec/100 mSec
Slope: 5:1

Line Inputs: 2
Type: balanced, transformer-coupled
Impedance: 10 k ohms
Nominal Level: –12 dBV to +6 dBu, adjustable

IFB Input:
Type: 2-channel, unbalanced (pin 1 common; pin 2 DC with channel 1 audio; pin 3 channel 2 audio)
Impedance: 10 k ohms
Nominal Level: –10 dBu

Intercom Interface:
Type: 2-channel, unbalanced (pin 1 common; pin 2 DC with channel 1 audio; pin 3 channel 2 audio)
Compatibility: single- and dual-channel intercom systems such as from RTS™ and Clear-Com®
Impedance: 10 k ohms
Nominal Level: –10 dBu

Main Output:
Type: balanced, transformer-coupled
Nominal Level: –2 dBu
Maximum Level: +20 dBu into 2 k ohms
Impedance: 100 ohms

Line-Level Talkback Output:
Type: transformer-coupled with series capacitors and isolation resistors
Impedance: 600 ohms
Nominal Level: +4 dBu
Maximum Level: +11 dBu (compressor restricts maximum)

Headphone Output: 1, binaural (stereo)
Compatibility: intended for connection to mono or stereo headphones or headsets with nominal impedance of 100 ohms or greater
Type: voltage driver
Maximum Output Voltage: 8 Vpp, 150 ohm load

Auxiliary Relay:
Contacts: 2, form C (Common, Normally Closed, Normally Open)
Rating: 1 A, 30 W (resistive)

Power Sources:
IFB Input: 24-32 Vdc, 125 mA
Intercom Interface: 24-32 Vdc, 125 mA
External: 24 Vdc, 90 mA; acceptable range
20-30 Vdc. All units include a universal input/24 Vdc output power supply

Dimensions (Overall):
8.1 inches wide (20.6 cm)
3.3 inches high (8.4 cm)
8.5 inches deep (22.4 cm)

Weight: 4.5 pounds (2.1 kg)
