Boss SYB5 Pedal Bass Synthesizer

OUR PART #: SYB5 MFR #: SYB-5

Copied to clipboard

The BOSS SYB-3 was the world’s first bass synthesizer to be packed into a compact pedal, and it found favor with experimentalists and tone afficiandos alike. ...Read more

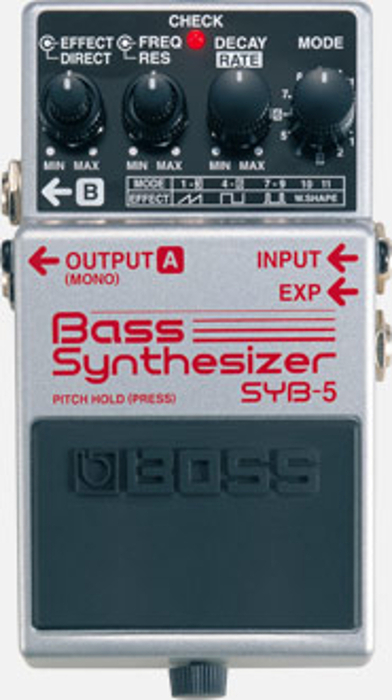

Boss SYB5 Pedal Bass Synthesizer Image 1
Boss SYB5 Pedal Bass Synthesizer
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The BOSS SYB-3 was the world’s first bass synthesizer to be packed into a compact pedal, and it found favor with experimentalists and tone afficiandos alike. Today, the next-generation bass-synth pedal has arrived —the SYB-5. Utilizing the latest in DSP technology, the SYB-5 faithfully reproduces the fat and sharp sound characteristics of classic analog synthesizers.

All of the 11 internal synth sounds have been markedly refined and enhanced to produce a fatter, more cutting sound than ever. The sounds are built on variations of three oscillator Waves (Saw, Square, Pulse) and filters that modulate according to the envelope and LFO changes you apply. You won’t believe how much synth-bass beef can come from such a small pedal.

An external pedal input jack has been added to the SYB-5 for connecting an EV-5 Expression Pedal (sold separately), which allows you to control filter cutoff and LFO rate in real time with your foot. In Modes 1-9 you can use the SYB-5’s onboard pedal to hold a note while playing a bass phrase over it. Time for a bass solo? You bet!

Boss SYB5 Features:

  • 11 DSP variations of Saw, Square, and Pulse synth waves
  • Control filter cutoff and LFO rate via EV-5 ExpressionPedal (sold separately)
  • Enhanced Wave Shape Mode provides sharper sounds
  • Hold notes with the onboard pedal and jam over the top

Boss SYB5 Specifications:

  • Nominal Input Level: -20 dBu
  • Input Impedance: 1 MOhms
  • Nominal Output Level: -20 dBu
  • Output Impedance: 1 kOhms
  • Recommended Load Impedance: 10 kOhms or greater
  • Residual Noise: -96 dBu (IHF-A, Typ.); All knobs at center position
  • Connectors: Input jack, Output A (MONO) jack, Output B jack, EXP jack, AC adaptor jack (DC 9 V)
  • Power Supply: DC 9 V: Dry battery / 9 V type (6F22 (carbon), 6LR61(alkaline)), AC Adaptor (PSA-series: optional)
  • Current Draw: 50 mA (DC 9 V)
  • Accessories: Owner’s Manual, Mode Label, Dry battery / 9 V type (6LR61)
  • Options: AC Adaptor (PSA-series), Expression Pedal (Roland EV-5)
  • Dimensions (WxDxH): 2 7/8" x 5 1/8" x 2 3/8"
  • Weight: 1 lb
