AEA R44C Figure-Eight Ribbon Microphone

OUR PART #: R44C MFR #: R44C

Copied to clipboard

The R44C is a museum quality replica of the 1936-38 RCA 44, hand made by AEA using 1.8 micron ribbon material originally manufactured by RCA. ...Read more

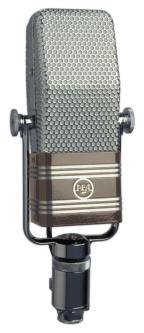

AEA R44C Figure-Eight Ribbon Microphone Image 1
AEA R44C Figure-Eight Ribbon Microphone
Our Price: $4,499.00

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$125/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The R44C is a museum quality replica of the 1936-38 RCA 44, hand made by AEA using 1.8 micron ribbon material originally manufactured by RCA. Features a Black and silver "radio" finish with bright polished chrome grill, cushion mount, and a bronze investment cast yoke. R44C parts are interchangeable with the original RCA 44B and BX. Supplied with hard wired two meter XLR output cable, shock mount / mic stand adapter, and AEA 44 VC vertical case for proper shipping and storage.

Features:

  • An accurate reproduction of the original RCA RibbonMic
  • Uses the same ribbon material as the original
  • Built to the highest studio standards possible
  • A single diaphragm Figure 8 ribbon microphone
  • 90dB down broadband at 90 degrees
  • Custom AEA Transformer
  • High SPL capability, max level is 140dB plus above200Hz
  • Low Self Noise
  • Consistent polar response
  • Operable in high humidity environments
  • Sounds equal to or better than the original RCA 44

Specifications:

  • Frequency Response: Below 30 Hz to above 20 kHz
  • Maximum SPL: 140 + dB SPL above 200Hz for 1% thirdharmonic
  • Output Sensitivity: 2.25 mV / Pa into unloadedcircuit
  • Output Impedance: 270 ohms broadband
  • Recommended Load: 1.2 K ohm or greater
  • Powering: Not required or recommended
  • Polarity: Pin 2 high for positive pressure on thefront of the microphone.
  • Connector: XLR-3M wired to a 2 meter captive cable
  • Polar Pattern: Native bi-directional pattern
  • Horizontal: Level changes with angle, frequencyresponse is consistent,
  • –90 dB null at 90 / 270 degrees
  • Vertical: Level changes with angle, reduced HFresponse above and
  • below 0 / 180 degree axis, null at 90 / 270 degrees
  • Ribbon Thickness: 1.8 microns ( .0000018 meter ) ofpure aluminum
  • Ribbon Width: 4.7 mm
  • Ribbon Length: 59.7 mm
