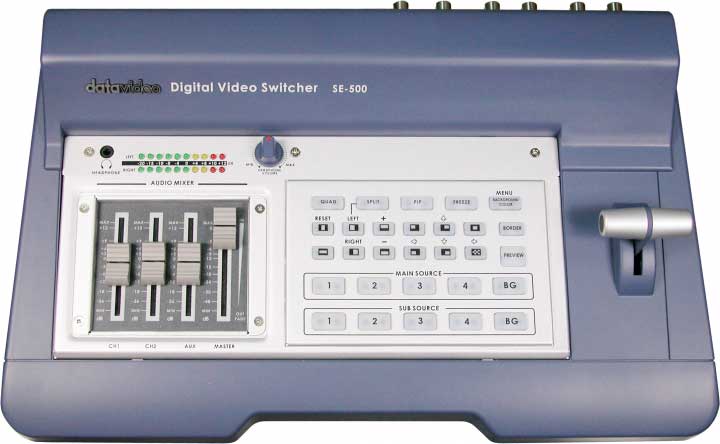

Datavideo Corporation SE-500
4-Channel Video Mixer, NTSC

OUR PART #:  SE-500

The Datavideo SE-500 is a compact and light weight, 4-channel SD video/audio switcher with built-in TBCs that accept S-Video (Y/C) and Composite Video signals.
Learn More
Our Price: $999.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Datavideo Corporation SE-500
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Datavideo SE-500 is a compact and light weight, 4-channel SD video/audio switcher with built-in TBCs that accept S-Video (Y/C) and Composite Video signals. In addition to S-Video and composite Video, the SE-500 also provides component (Y:U:V) output. Features include dissolves, flicker free cuts, wipes, splits, PiP and color processor.

The SE-500 is ideal for small churches, schools, clubs, pubs - anywhere that you want a low cost, extremely reliable and simple to use video and audio switcher. It has a selectable multi view output of the four inputs meaning you only need two video monitors - one for the source and one for the program output. The SE-500 can be manually operated or controlled via RS-232 & MIDI interface. As with all Datavideo products SE-500 works on 12V DC.

Included Accessories

  • 1 x 4 ft Y/C S-Video cable
  • 2 x male BNC to male RCA cables
  • 2 x female RCA to male BNC adapters
  • 1 x stereo RCA cable
  • 1 x YUV break-out cable
  • 12V 1.5A DC operation 110/220 power supply and cord included

Connections

  • Video
    Input: 4 x Composite, 4 x S-Video
    Output: 3 x Composite and 1 x S-Video or 2 x Composite, 1 x Component
  • Audio
    Input: 2 x unbalanced RCA and 1/4" mic
    Output: 2 x unbalanced RCA
  • Controls: RS-232 remote control interface
  • Power: 12V 1.5A DC operation 110/220 power suply and cord included
  • Optional: Convert composite video with audio into a realtime MPEG-4 video stream with the NVS-10 network video server

Features

  • Monitor output: preview may be displayed as PIP or Quad Preview
  • No genlock required: frame syncs and TBC built in for each active source
  • Works with TB-5 tally box to provide tally output
  • With the included breakout cable, one composite output and one S-Video output can be combined and converted into a component output
  • Built in audio mixer with two microphone channels and one auxiliary video source input
  • Picture-in-Picture
  • Color processor for video correction
  • Digital processor - high image quality
  • Digital effects - split, PIP, wipe, fade and quad display effect
  • Illuminated control buttons
  • 5-pin MIDI control interface
  • Easy titling with Datavideo CG-100 character generator
  • Headphone monitor with volume control
  • Dimensions (L x W x H): 10.3" x 15.7" x 3.3"
  • Weight: 4.4 lbs
  • Available in NTSC or PAL video standards (not a dual standard device)
