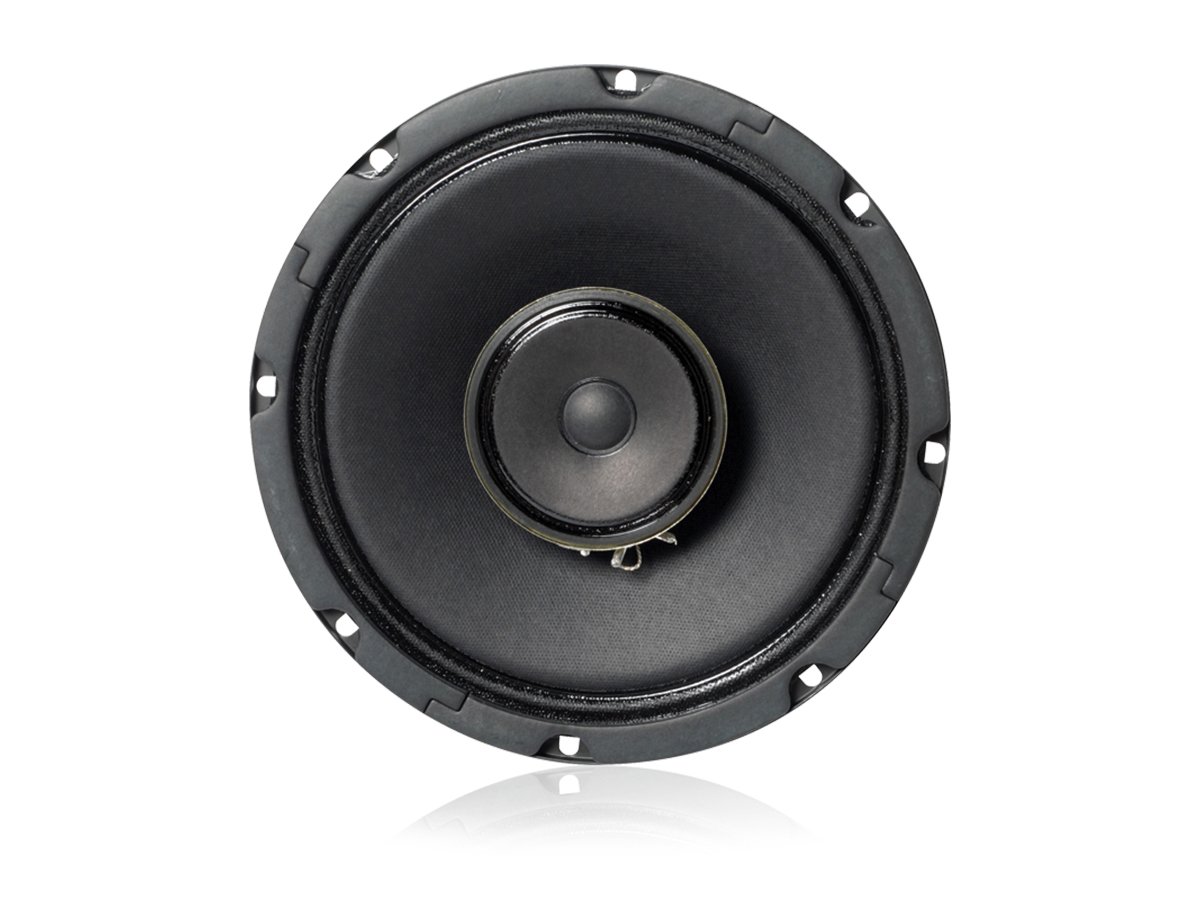

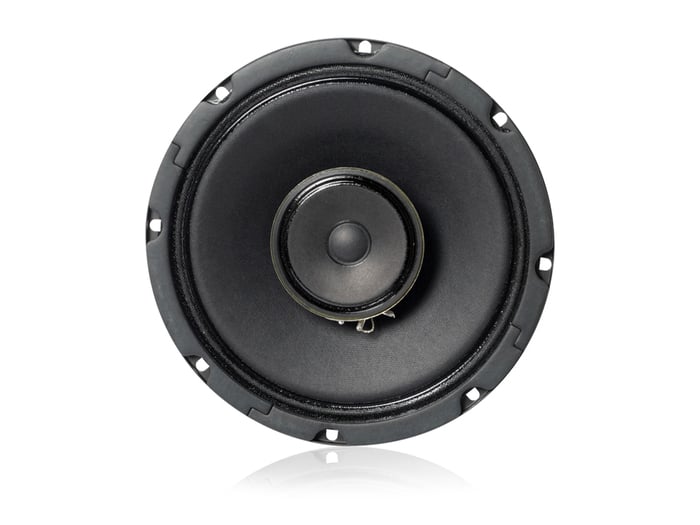

Atlas Sound C803AT167
8" Coaxial Speaker with Transformer, 16 Watts

OUR PART #:  C803AT167

High-quality, 16-watt Model C803A utilizes a post-mounted tweeter which adds strength to the assembly and provides an attractive appearance.
Learn More
Our Price: $85.99
List Price: $106.99
You save 20%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound C803AT167
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

High-quality, 16-watt Model C803A utilizes a post-mounted tweeter which adds strength to the assembly and provides an attractive appearance. This coaxial loudspeaker features a 70 Hz-15.5kHz, +/-5dB frequency response and a broad, uniform dispersion pattern of 120┬░. Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems. The C803A combines a full-size 8" dia. low-frequency reproducer and a 3" high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10 oz. ceramic magnet; the tweeter has a 2.35 oz. ceramic magnet and the unit has a peak sensitivity of 98dB (at 1 watt, 1 meter).

Applications
Use Atlas Sound 8" dia., multi-purpose, coaxial loudspeaker Model C803A for voice transmission, music and signal reproduction in high-quality commercial, industrial and institutional applications.

Features

  • Industry standard 8" coaxial, 16-watt loudspeaker
  • Offers proven performance with wide frequency response
  • Post-Mounted tweeter adds strength and a more attractive appearance
  • Ideal for Multi-Purpose Commercial, Industrial, and Institutional use

Specifications

  • Speaker Size: LF: 8"; HF: 3"
  • Power Rating: 16 Watts RMS
  • Sensitivity (SPL at 1W/1M): 98dB (peak), 95dB (avg)
  • Impedance: Nominal, 8 ohms
  • Frequency Response: 70 Hz - 15.5 kHz
  • Crossover Frequency: 2,800 Hz, first order
  • Dispersion: 120┬░
  • Mounting Dimensions: 7 5/8" B.C.
  • Cone Material: Treated Paper
  • Surround Material & Damping: Self Edge with Dampener
  • Flux Density: 10,600 Gauss, 1.06 Tesla
  • Magnet Weight: Nominal, 10 oz
  • Basket Material: 20 ga. Stamped Steel
  • Voice Coil Diameter: 1"
  • Voice Coil Material: Copper
  • Voice Coil Former Material: Black Anodized Aluminum
  • Voice Coil Winding Width: .265"
  • Top Plate Thickness: .239"
  • Weight: 2.4 lbs
  • Diameter & Depth less Xfmr: 8 1/8" dia. & 2 7/8" deep
