Kramer C-GMA/GMA-25 Molded 15-pin HD Plus Audio (Male-Male) Cable (25')

OUR PART #: C-GMA/GMA-25 MFR #: 92-2202025

Copied to clipboard

Kramer’s GMA series are high performance cables with male 15-pin HD and 3.5mm stereo audio connectors at each end. ...Read more

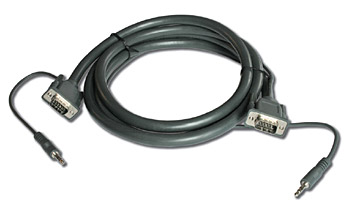

Kramer C-GMA/GMA-25 Molded 15-pin HD Plus Audio (Male-Male) Cable (25') Image 1
Kramer C-GMA/GMA-25 Molded 15-pin HD Plus Audio (Male-Male) Cable (25')
Our Price: $36.00
List Price: $45.00
You save 20%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Kramer’s GMA series are high performance cables with male 15-pin HD and 3.5mm stereo audio connectors at each end. They are perfect for computer graphics video to display installations which require an audio signal as well.

Features

  • Quality Construction - Constructed using our rugged and flexible 14 conductor cable
  • Easy Connection - Pre-terminated with molded 15-pin HD connectors (male to male), gold plated pins and thumb screws for easy connection and a 3.5mm stereo mini jack
  • Easy Installation - Audio leads extend 8" (20cm) beyond the 15-pin HD connector on one end and 24" (61 cm) on the other

Specifications

  • Coax Specifications:
    • Conductor: 26 AWG 7/34 tinned copper
    • Dielectric: Foam polyethylene with red, green, blue color coding
    • Inner Jacket: PVC
    • Jacket Colors: Black
    • Shield:
    • (A) 90% spiral 38 AWG tinned copper
    • (B) aluminum-foil/mylar 25% overlap rate
  • Diameter:
    • Center Conductor: 0.019" (0.48mm)
    • Dielectric: 0.076" (1.95mm)
    • Individual Coax: 0.102" (2.6mm)
  • Electrical Specifications:
    • Attenuation (dB/100 ft.):
      • -0.5 dB @1MHz
      • -1.3 dB @ 5 MHz
      • -1.9 dB @ 10MHz
      • -4.0 dB @ 50MHz
      • -5.7 dB @100MHz
      • -8.0 dB @ 180MHz
      • -14.0 dB @ 400MHz
    • Capacitance: 17.3pF per foot, 57pF per meter
    • DC resistance: 45 ohms per 1000ft, 148 ohms per km
    • Impedance: 75 ohms
    • Temperature: 68° to 167°F (- 20° to 75°C)
  • General Specifications:
    • Outer Diameter: 0.393 inches, 10.0mm
    • Outer Jacket Color: Dark gray w/white lettering
    • Outer Jacket: PVC
    • Shield:
    • (A) 85% braid 36 AWG tinned copper
    • (B) aluminum-foil/mylar 25% overlap rate
  • Regulatory Specifications:
    • CSA: C(UL) CL2
    • UL: CL2
  • Shielded Pair Specifications:
    • Conductor: 26 AWG 7/34 tinned copper
    • Diameter: 0.34" (0.88mm)
    • Jacket Colors: White & white/black, red & red/black
    • Jacket: HD Polyethylene
    • Shield:
    • (A) 85% braid 36 AWG tinned copper
    • (B) mylar 25% overlap rate
  • Single Strand Specifications:
    • Conductors: 26 AWG 7/34 tinned copper
    • Diameter: 0.34" (0.88mm)
    • Jacket Colors: Red, orange, brown, yellow, black, red/black
    • Jacket: HD-polyethylene
