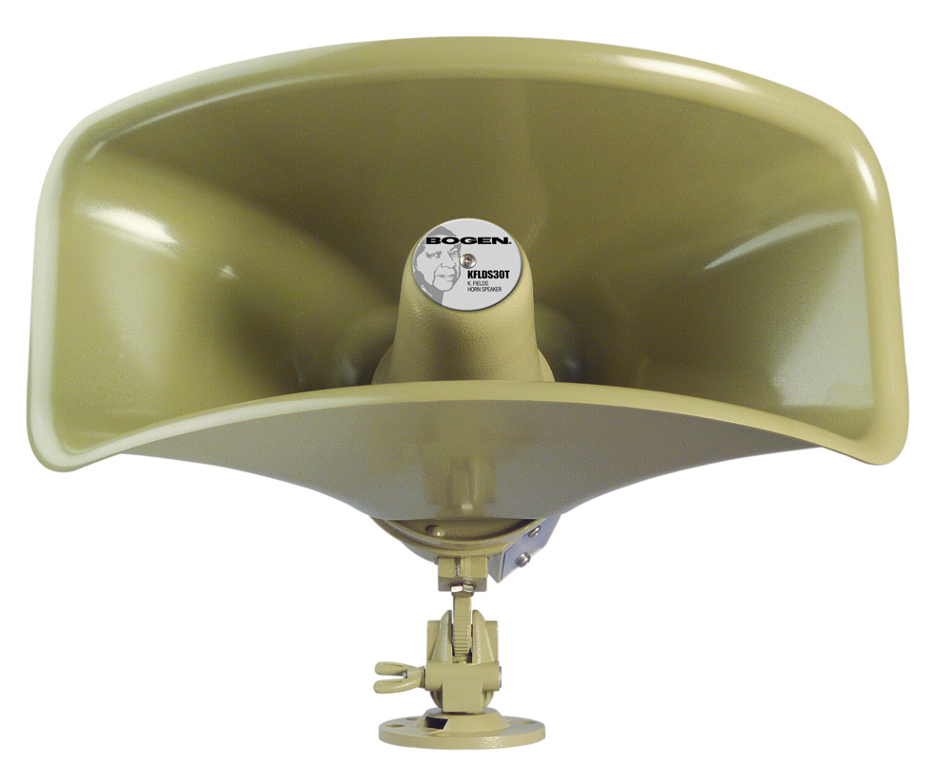

Bogen KFLDS30T Wide-Dispersion Reentrant Horn 30W with Transformer

The Bogen KFLDS30T is a wide dispersion, high-intelligibility, reentrant-type horn loudspeaker designed for applications where wide angle projection and directivity is a necessity.

The flare-shaped horn can be rotated to project wider dispersion in either the horizontal or vertical plane. The speaker’s all-purpose tilt-and-swivel base simplifies installation and positioning.

Its sturdy, weatherproof, polycarbonate and aluminum construction is ideal for both indoor and outdoor use.

Screw terminals make installation fast and easy. A plastic cover protects the connectors and 70V/25V tap selector switch, as well as provides strain relief for the audio line.

Bogen KFLDS30T Features:

• 30 Watts max. @ 70 volts or 15 Watts max. @ 25 volts
• Weatherproof polycarbonate and aluminum construction
• Driver enclosed in weatherproof housing
• 70° × 95° dispersion with rotatable horn flare
• All-purpose mounting bracket provides precise positioning in the vertical and horizontal planes with a single adjustment
• Seven-position, weather-sealed tap selector switch
• Rotary switch-selected power taps
• Tap settings for 70V: 30, 15, 7.5, 3.7, 1.8 watts; for 25V: 15, 7.5, 3.7, 1.8, 0.9, 0.5, 0.25 watts
• Self-aligning, field-replaceable diaphragm
• High-intelligibility and efficiency
• Screw terminals for easy audio line connection
• Plastic cover protects connectors and tap selector switch, also provides strain relief for the audio line
• Textured mocha enamel finish on aluminum, matching polycarbonate horn flare
• Limited lifetime warranty
• Mountable to I-beam flange using Bogen’s BC1 Beam Clamp (sold separately)
• Mountable to electrical box using Bogen’s HSES10 mounting strap (sold separately)
• Terminal Cover (TCSPT1) allows connection of conduit fittings to horn speakers (sold separately)

Bogen KFLDS30T Specifications:

• Power Rating (RMS):
  • 30 Watts continuous (70V amplified systems)
  • 15 Watts continuous (25V amplified systems)
• Frequency Response: 300 Hz - 12 kHz
• Impedance: 25/70 volts
• Power Taps:
  • 70V: 1.8, 3.7, 7.5, 15, or 30 watts
  • 25V: 0.25, 0.5, 0.9, 1.8, 3.7, 7.5, or 15 watts
• Sound Pressure Level: 119 dB @ 1m on axis @ 30 watts (avg 400 Hz to 3 kHz) 104 dB @ 1m on axis @ 1 watt (avg 400 Hz to 3 kHz)
• Dispersion: 70° x 95°, rotatable horn flare
• Dimensions: 14-3/8" W × 8-1/4" H × 12-7/8" D
• Product Weight: 6 lb.
• Finish: Textured mocha enamel finish on aluminum, matching polycarbonate horn flare
