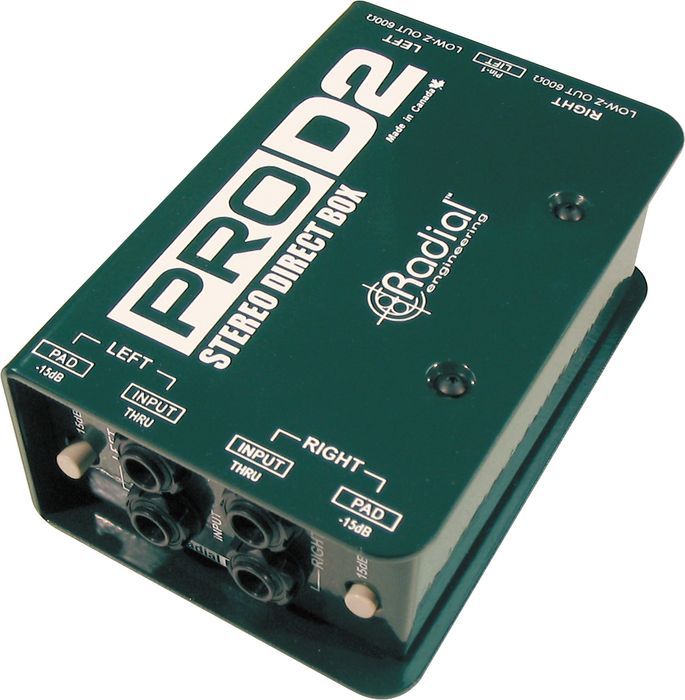

Radial Engineering ProD2 Stereo Passive Direct Box

OUR PART #: PROD2 MFR #: R800 1102

Copied to clipboard

Radial's most popular direct boxes are known for their tremendous headroom, and the ProD2 is no exception. ...Read more

Radial Engineering ProD2 Stereo Passive Direct Box Image 1
Radial Engineering ProD2 Stereo Passive Direct Box Image 2
Radial Engineering ProD2 Stereo Passive Direct Box Image 3
Radial Engineering ProD2 Stereo Passive Direct Box
Our Price: $199.99
List Price: $240.00
You save 17%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$6/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Radial's most popular direct boxes are known for their tremendous headroom, and the ProD2 is no exception. Made to handle electric keyboards and other high-input instruments, you can count on the ProD2 to withstand huge signal levels without distortion.

At the core of its passive design are two high-performance Eclipse ET-DB2 transformers, which deliver a wide frequency range without distortion, even in the critical bass and mid regions. Unlike active circuits that overload when the signal gets too hot, transformers saturate the sound, creating a pleasing effect that rounds the tone and acts like a subtle limiter. When paired with digital pianos and drum machines that produce excessive dynamics, that feature is key to always producing the perfect tone. They also also adept at eliminating hum and buzz caused by ground loops.

If you're a musician with a hot sound that needs to be reigned in, the ProD2 will have your signal perfect for any mixing board you come across. Don't delay in ordering yours!

Features

  • Stereo direct box designed for keyboards
  • Smooth, warm sound rounds out digital edge
  • Able to handle huge transients without choking
  • May be rackmounted for touring rigs
  • Pad for high-level sources to prevent overload distortion

Specifications

  • Audio Circuit Type: Passive, transformer based
  • Transformer: Eclipse ET-DB2, 12:1 ratio
  • # of Channels: 2
  • Frequency Response: 20 Hz to 18.5 kHz (±0.2 dB)
  • Dynamic Range: 128 dB
  • Total Harmonic Distortion: 0.01% from 20 Hz to 20 kHz @ -10 dB
  • Phase Deviation:
    • 1° @ 100 Hz
    • 8° @ 20 Hz
  • Input Connectors: 1/4"
    • Input Impedance: 140 kΩ, unbalanced
    • Maximum Input: +18 dB @ 20 Hz
  • Output Connectors: XLR, 1/4" thru
    • Output Impedance: 150 Ω, balanced
  • Features: Input pad, 180° polarity reverse, ground lift
  • Construction: 14-gauge steel chassis and outer shell
  • Power: Passive, no power required
  • Conditions: For use in dry locations only, 5-40°C
  • Dimensions (H x W x D): 1.8" x 3.3" x 5"
  • Weight: 1.2 lbs (0.54 kg)
