Kramer C-SM/2BM-1

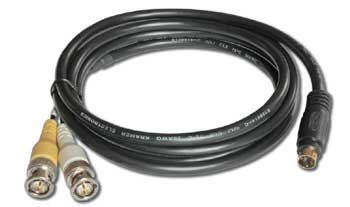

Molded 4-Pin to 2 BNC Breakout Cable, 1 Ft

OUR PART #:  C-SM/2BM-1

This cable adaptor is used with a S-video cable to convert a 4 mini-DIN s-Video connector to two 75? BNC male or female connectors.
Learn More
Our Price: $4.80
List Price: $6.00
You save 20%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Kramer C-SM/2BM-1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

This cable adaptor is used with a S-video cable to convert a 4 mini-DIN s-Video connector to two 75? BNC male or female connectors.

Specifications

  • Conductor: 26 AWG Tinned Copper (0.019")
  • Impedance: 75 ohms
  • Insulation: Foam Polyethylene 1.95mm thickness
  • Inner Shield: Aluminum Foil + Tinned Copper spiral
  • Inner Jacket: PVC, as color code (Yellow & White)
  • Drain Wire: Tinned Copper - 24 AWG
  • Outside Jacket: Dark Gray PVC, diameter 6.2mm
  • Conductor Resistance: 148 ohm/Km
  • Velocity of Propogation: 76%
  • Attenuation (dB/100 ft): -0.5 dB @ 1MHz, -1.2 dB @ 5 MHz, -1.8 dB @ 10 MHz, -4.4 dB @ 50 MHz, -6.7 dB @ 100 MHz
