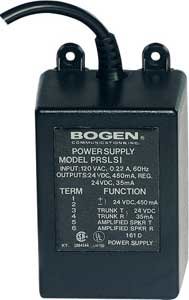

Bogen PRSLSI 24VDC 450mA Power Supply and Loop Start Interface

Bogen’s PRSLSI functions as both a loop start interface and as a 24V DC power supply.

The PRSLSI includes Tip and Ring terminals for connection to a loop start trunk to provide paging access and enough audio capacity to drive up to 25 self-amplified speaker inputs.The PRSLSI also supplies 9 CU (450 mA) of regulated 24V DC power for external equipment like self-amplified speakers.

Features

• 24V Talk battery supply for loop start ports
• Buffered audio output for up to 25 self-amplified speakers
• 9 CU (24V DC, 450 mA) power supply for external equipment
• Six-terminal barrier strip
• Integral flanges and rubber feet for wall or shelf mounting
• Two-Year Warranty
