Video Accessory Corp 61-415-516
16-channel Analog Video Optimization System

OUR PART #:  61-415-516

Optimize analog video prior to digital recorder with VAC's DVRx - the ONLY product specifically designed to alleviate many common DVR recording problems.
Learn More
Our Price: $2,303.42
List Price: $2,322.00
Write the first review.
Video Accessory Corp 61-415-516
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

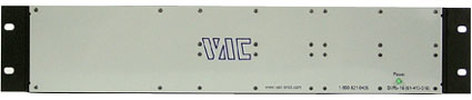

Optimize analog video prior to digital recorder with VAC's DVRx - the ONLY product specifically designed to alleviate many common DVR recording problems. The DVRx-16 incorporates sixteen composite video channels in a 2U rack. Each channel features: 1X2 DA; differential input for ground loop mitigation; AC coupled input with automatic DC restore on each output; variable gain and variable EQ.

Specifications:

  • Input: Differential 75 Ohms (BNC)
  • Outputs: 2 Active outputs per channel (BNC)
  • Bandwidth: 40 MHz bandwidth (-3 dB)
  • Input Signal Level: 0.5-2.0 Vpp input signal range
  • Output Coupling: DC
  • Gain Control: 0.75X to 1.5X gain control
  • Mounting: Removable rack mounting brackets
  • Power Supply: 110 VAC input power, < 500ma
  • Power Connector Type: IEC 320 power connector
  • Temperature: -40C to 50C
  • Humidity: 0% - 95%
  • Dimensions: 19” rackmount (2 RU)
  • Shipping Weight: 10 lbs.
