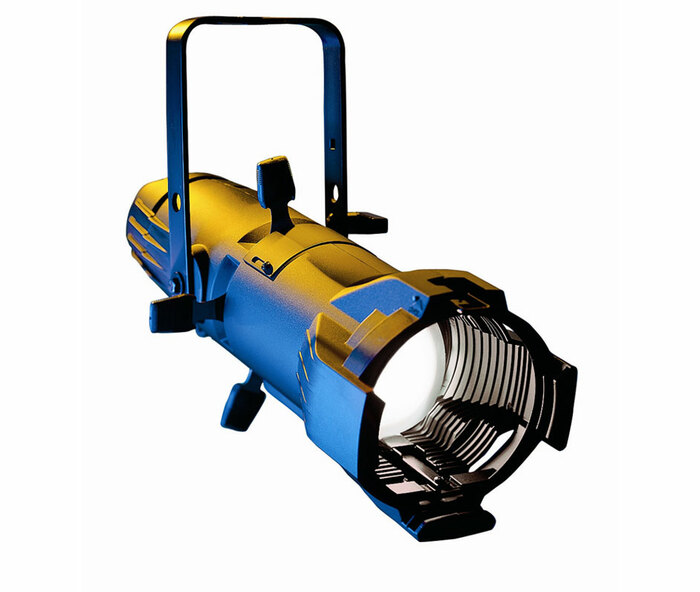

ETC Source Four Jr 50Degree 575W Ellipsoidal with 50 Degree Lens, Stage Pin Connector

OUR PART #: S4JR-50-B MFR #: 7062A1003-B

Copied to clipboard

The power of Source Four® in a compact and economical size! The smaller-scale Source Four jr™ uses the same technology that made the standard Source Four famous. ...Read more

ETC Source Four Jr 50Degree 575W Ellipsoidal With 50 Degree Lens, Stage Pin Connector Image 1
ETC Source Four Jr 50Degree 575W Ellipsoidal With 50 Degree Lens, Stage Pin Connector
Our Price: $424.00
List Price: $530.00
You save 20%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$12/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The power of Source Four® in a compact and economical size! The smaller-scale Source Four jr™ uses the same technology that made the standard Source Four famous. That means unsurpassed imaging and beam quality. Compared to many conventional 650W and 1000W ellipsoidal spotlights, Source Four jr’s 575 watts still deliver an even brighter light and offer the flexibility of multiple HPL lamp options and interchangeable lenses. The Source Four jr is perfect for -- but never limited to -- smaller theater venues, churches, schools, industrials, and any other application where affordability, space-savings and great performance are the criteria. This version comes with a Stage Pin connector.

ETC 450J-B Features:

  • 26º, 36º, and 50º fixed-field angles
  • Rated up to 575W
  • Super-efficient HPL lamp
  • Interchangeable lens assemblies
  • Faceted dichroic reflector removes 90% of IR heat from beam
  • Two-plane stainless-steel shutter blade assembly
  • Tool-free lamp adjustment
  • Rugged die-cast aluminum construction
  • Accepts M-size gobos and drop-in iris
  • Supports ETC Dimmer Doubling™ (North America only)

ETC 450J-B Specifications:

  • Physical:
    • Rugged die cast aluminum construction
    • 20 gauge stainless steel shutters in a bi-plane assembly
    • Interchangeable lens tubes with smooth–running teflon guides provide three user-fit field angle options
    • High impact, thermally insulated knobs and shutter handles
    • Two accessory slots, and a top mounted, gel frame retainer
    • Steel yoke with two mounting positions
    • Positive locking, hand-operated yoke clutch
    • Slot for stainless steel patterns
    • Slot with sliding cover for motorized pattern devices or optional iris
    • UL and cUL Liste
  • Electrical:
    • 115-240V, 50/60Hz
    • High temperature 3–conductor 36” leads in a glass fiber outer sleeve
    • Supports ETC Dimmer Doubling™ technology
  • Lamp:
    • HPL — compact tungsten filament contained in a krypton filled quartz envelope (see table for suitable lamp types)
    • 575W Maximum
    • Integral die cast aluminum heat sink lamp bas
  • Optical:
    • Optimized optical system for efficient photometric performance
    • Projector-quality, high contrast aspheric lens
    • Faceted borosilicate reflector with dichroic cold mirror coating removes greater than 90% infrared radiation (heat) and reflects greater than 95% of visible light
    • Reflector secured with anti-vibration shock mounts
    • Tool free, positive locking X, Y and Z lamp centering adjustments, unaffected by relamping
    • Beam edge continually adjustable hard-to-soft
    • Interchangeable lens assembly kits permit selection of 26°, 36°, and 50° field angles, and 25°-50° zoom range

Note:

ETC Source Four jrs are supplied with C-clamp, color frame and 3’ (96cm) leads as standard. Lamp NOT Included. Stage Pin Connector Included.
