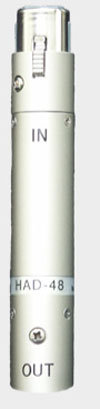

Sanken HAD-48
Mic Preamp for Dynamic Mic

OUR PART #:  HAD-48

Because dynamic microphones have lower output levels than condenser microphones, long cable lengths often result in a noticeably noisy signal.
Learn More
Our Price: $239.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Sanken HAD-48
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Because dynamic microphones have lower output levels than condenser microphones, long cable lengths often result in a noticeably noisy signal. Sanken’s innovative HAD-48 solves this dilemma by increasing the microphone level considerably without degrading the signal. Providing a choice of switchable 20dB or 40 dB of gain, this greatly improves the signal-to-noise ratio. Additionally, increased noise due to added gain in the microphone preamp can be reduced.

The HAD-48 features an XLR-M XLR-F tube only 105.3mm long and runs off 48V phantom power from the mixer input (no batteries needed!) and draws only 3mA.

Features:

  • Provides needed gain for dynamic microphones
  • Provides gain boost for long cable lengths
  • Selectable Gain: +20dB or +40dB
  • Powered by mixer phantom 48 volts
  • No batteries required
  • Small and portable, attractive packaging
  • Does not allow phantom power to reach the microphone

Specifications:

  • Gain: +29dB or +40dB switchable
  • Nominal input level: 1.0mV(-60dBV)
  • Nominal output level: 0.1V(-20dBV); Select +20dB position for high impedence output dynamic mic and +40dB position for low impedence output mic.
  • Frequency res: 50Hz~20kHz
  • Consumption current: less than 4.5mA
  • Noise level: -121 dBA
  • Max Input Level: 0.48V(-6.4dBV)(+20dB position)
  • (THD 1%): 47.7mV(-26dBV)(+40dB position)
  • Max Output level: 4.8V(13.6dBV)(THD1%)
  • Input impedence: 10k Ohms (1kHz)
  • Output impedence: 180 Ohms (1kHz)
  • Expected receive side impedence: more than 10k Ohms
  • Powering: 48V phantom fed from mixer or micpre side
  • Input connector: XLR-3F
  • Output connector: XLR-3M
  • Dimensions: 115.3mm(L), 19mm(depth)
  • Weight: 90g

Se

Click to download
