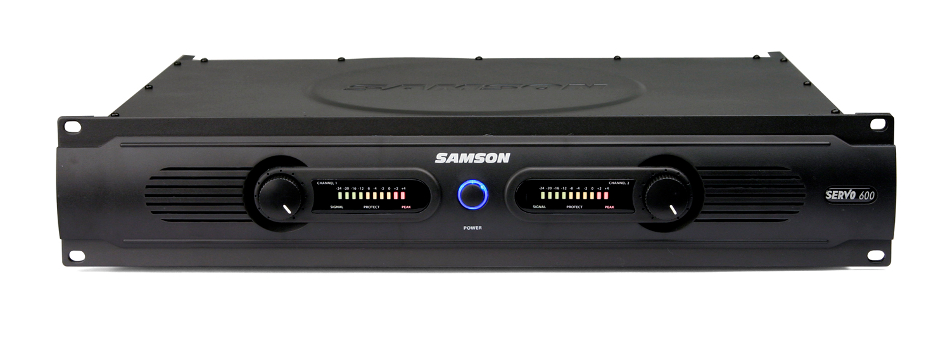

Samson Servo 600
Stereo Power Amplifier, 300 Watts Per Channel at 4 Ohms

OUR PART #  SERVO600

Our Price: $329.99
List Price: $409.99
You save 20%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Samson Servo 600 stereo power amplifier has been designed to provide robust, clean output with low distortion and wide dynamic range, along with the dependability demanded by the most professional audio engineers and installers.

The convenient 2 rack-space design is compact, and yet there’s plenty of power available, with 2x 225 Watts at 8 Ohms, 2x 300 Watts at 4 Ohms over the full frequency spectrum, from 10 Hz to 55 kHz.

For mono applications, a Bridge mode links both channels of the amplifiers, thus providing even more single channel power, with a power rating of 600 watts into an 8 Ohm load.

Input connections are available for both unbalanced RCA connections and balanced 1/4-inch TRS connections. For the outputs, the Servo 600 amplifier provides standard 5-way binding posts and 1/4” phone jacks. Front-panel controls and displays include a power switch with LED indicator, as well as independent left and right channel input level controls. To help you set the correct operating levels, the Servo 600 amplifier includes front panel Signal, Peak and Protection LED indicators. There's also a ten-segment VU meter to help you set a good operating level.

Like all serious power amplifiers, the Servo 600’s internal electronics are based around a serious power-core, with an over-sized toroidal transformer and large extruded heat sink. To keep the Servo 600 amplifier running cool, the design employs twin internal wind tunnels with forced-air cooling via two temperature-sensitive, variable speed fans, which greatly reduce the chance of thermal and overheating problems. Multi-stage protection for powerup, over-heating, over-current, short circuit, low output impedance and DC voltage, assures high reliability under the most demanding situations.

The Servo 600 amp is road tough with its all steel chassis and 19-inch rack mount design. The Servo 600 amplifier is ready for a life on the road, or to make its home in a fixed installation.

Optimized for live sound venues, houses of worship, commercial installations, and for driving small and medium-sized live PA systems, the Servo Series amplifiers will deliver reliable power from gig-to-gig, venue-to-venue and day-to-night, and with Samson's 3-year warranty, this amplifier will give you years of worry-free operation.

Samson Servo 600 Features:

  • Power to spare - 2x 225 Watts at 8 Ohms, 2x 300 Watts at 4 Ohms.
  • For mono applications, a Bridge mode links both channels of the amplifiers, thus providing even more power, with a power rating of 600 watts driving an 8 Ohm load.
  • Clean, crisp sound - Impressive audio specifications such as 0.04% THD, dynamic range of 105 dB, crosstalk of 80 dB, and frequency response of 10 Hz to 55 kHz guarantee ultra-clean sound quality.
  • Independent input level controls for each channel allow precision adjustments.
  • 10 segment LED signal indicators for each channel continuously display power output levels and allow you to correct for overloading (clipping) conditions.
  • Unique stable bipolar circuit design that continuously keeps DC output during idling at or near zero volts (thus keeping idle speakers at their zero point). This serves to minimize heat overload problems by effectively preventing the Servo 600 from applying power when unnecessary.
  • Forced air cooling via two temperature-sensitive,variable speed fans provides reliable performance without thermal and overheating problems.
  • Protection relay circuitry (with dedicated LEDs foreach channel) that guards against overheating or faulty wiring conditions and also prevents “thumps” when powering on or off. This means that you can use the Servo Series with a single power strip into which a mixer or other audio devices are connected, without danger of damage to connected speakers.
  • Input connectors for each channel accommodate both RCA or balanced 1/4" TRS plugs.
  • Output connections are made via 5-way binding posts.
  • Toroidal transformer power supply for high current and low profile.
  • The Servo 600 can be mounted in any standard 19" rack(taking just two rack spaces), making it easy to integrate the amp into any fixed or traveling PA rig.
  • Rugged construction (an all-steel chassis with a cool gray finish and a lightweight anodized aluminum heat sink) makes the Servo 600 eminently roadworthy.
  • 3-Year Warranty from Samson.

Samson Servo 600 Specifications:

  • Stereo Both Channels Driven:
    • 8 Ohms: 225 Watts x 2
    • 4 Ohms: 300 Watts x 2
  • Bridge Mono, 8 Ohms: 600 Watts
  • Signal-to-Noise Ratio (20 Hz - 20 kHz): 104dB
  • Distortion (SMPTE-IM): 0.04%
  • Input Sensitivity @ 8 Ohms: 1.24V (4dBu)
  • Voltage Gain: 34 dB
  • Output Circuitry Class: AB
  • AC Power:
    • @ 1/8 Rated Power, 4 Ohms max.: 1.3A
    • @ 1/3 Rated Power, 4 Ohms max.: 3.3A
    • @ Rated Power, 4 Ohms max.: 10A
  • Distortion (typical @ 4 Ohms), 20 Hz - 20 kHz, 10dB:
    • Below Rated Power: 0.03%
    • 1 kHz, Rated Power: 0.1%
  • Frequency Response @ 8 Ohms, 1 Watt:  20 Hz - 20kHz, +0/-0.5dB
  • Damping Factor (400 Hz): 350
  • Input Impedance: 15 kOhms Unbalanced, 30 kOhms Balanced
  • Input Clipping: 10 VRMS (22dBu)
  • Cooling: Continuously variable speed, fanforced air
  • Connectors (Each Channel):
    • Input: RCA unbalanced and 1/4" (6.3mm) TRS
    • Output: Balanced 5-way Binding post and 1/4" Phone
  • Controls: AC Power switch, Channel 1 and 2 volume
  • Indicators:
    • Power On (Blue)
    • Protection (Amber)
    • Signal (Green) for each channel
    • Peak (Red) for each channel
    • Level: -24dB, -20dB, -16dB, -12dB, -8dB, -4dB, -2dB, 0dB, +2dB and +4dB (PEAK)
  • Protection:
    • Short Circuit
    • Thermal
    • Current Limit
    • DC Offset
    • Current Inrush
    • RF Protection
    • Turn On/Turn Off Muting
  • Power Requirements: 115/230, 240VAC, 50/60 Hz
  • Dimensions (WxHxD): 19" x 3.5" x 11.7" (483mm x89mm x 297mm)
  • Net Weight: 24 lbs (10.91 kg)
