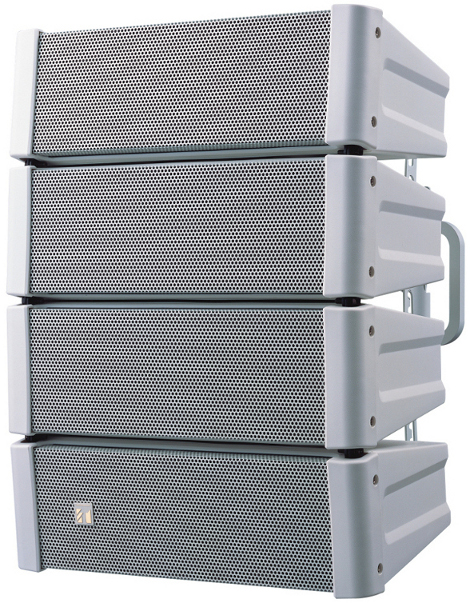

TOA HX-5W
600W Variable Dispersion Speaker in White

OUR PART #  HX5W

Our Price: $609.35
List Price: $754.07
You save 19%! (Low Price Guarantee)
In Stock

Recommended Accessories

The TOA HX-5 Variable Dispersion Speaker aims to make it easier to manage the pattern control in the voice frequency range by offering four adjustable dispersion angles— 60°, 45°, 30° and 15°— that you can change in seconds. You can also get pattern control below 1kHz in a compact and lightweight enclosure that’s perfect for a multitude of applications.

TOA HX-5 Features:

  • Ideal for auditoriums, houses of worship and gymnasiums and more
  • Adjustable dispersion angle to 60°, 45°, 30° or 15°
  • Improved intelligibility through tailored coverage
  • Compact design includes four pre-assembled modules with four LF drivers and twelve HF dome tweeters
  • In-line driver arrangement for superior vertical coverage control
  • Horizontal coverage remains broad through speech range: 100 deg. Fixed
  • Contoured waveguide-baffle for distortion-free coverage control
  • High power handling: 600 W cont. (200 W, 24 hr. pink noise)
  • High sensitivity: up to 99 dB, 1 watt @ 1 meter (500 to 5,000 Hz)
  • Stack up to four units for improved coverage control
  • Lightweight polypropylene construction
  • White Color
  • Parallel connectors - dual Speakon and screw terminal
  • Vertical or horizontal mounting
  • Built-in surface-mount bracket
  • Hardware included for flying / suspension
  • Optional wall, ceiling and stand-mount hardware
  • Optional bracket for joining multiples into one array
  • Compatible with Omnimount 60 Series mounting hardware
  • Optional subwoofer, model FB-120
  • Optional 70 volt transformer, model MT-200
Matching Transformer 200W
TOA MT200 Matching Transformer 200W
70 V transformer for HX-5 speakers.
In Stock
132.39 163.83 19
In Stock
Free Shipping Available
Bracket Mount Pre-Install White
TOA HYPF1W Bracket Mount Pre-Install White
Pre-install bracket mount, white.
In Stock
118.99 147.25 19
In Stock
Subwoofer 12" 600W 8 ohm Subwoofer in White
TOA FB120W Subwoofer 12" 600W 8 ohm Subwoofer in White
Portable 600W subwoofer for the HX-5B, used for augmenting low frequency response. 12' cone woofer loudspeaker. Can be mounted on the floor or suspended from the ceiling. White.TOA FB120W Specifications: Power Handling Continuous pink ...
Usually ships in 7-14 business days.
Need it sooner? Call us!
434.39 537.55 19
Usually ships in 7-14 business days.
Need it sooner? Call us!
Ceiling Mount Bracket White
TOA HYCW1W Ceiling Mount Bracket White
Ceiling Mount Bracket White
Usually ships in 7-14 business days.
Need it sooner? Call us!
105.60 130.68 19
Usually ships in 7-14 business days.
Need it sooner? Call us!
Wall/Ceiling Mounting Bracket, white
TOA HYWM1W Wall/Ceiling Mounting Bracket, white
Ceiling/wall mounting bracket, white. For TOA speakers.
Usually ships in 7-14 business days.
Need it sooner? Call us!
50.57 62.58 19
Usually ships in 7-14 business days.
Need it sooner? Call us!

TOA HX-5W
600W Variable Dispersion Speaker in White

OUR PART #  HX5W

Product Information:

The TOA HX-5 Variable Dispersion Speaker aims to make it easier to manage the pattern control in the voice frequency range by offering four adjustable dispersion angles— 60°, 45°, 30° and 15°— that you can change in seconds. You can also get pattern control below 1kHz in a compact and lightweight enclosure that’s perfect for a multitude of applications.

TOA HX-5 Features:

  • Ideal for auditoriums, houses of worship and gymnasiums and more
  • Adjustable dispersion angle to 60°, 45°, 30° or 15°
  • Improved intelligibility through tailored coverage
  • Compact design includes four pre-assembled modules with four LF drivers and twelve HF dome tweeters
  • In-line driver arrangement for superior vertical coverage control
  • Horizontal coverage remains broad through speech range: 100 deg. Fixed
  • Contoured waveguide-baffle for distortion-free coverage control
  • High power handling: 600 W cont. (200 W, 24 hr. pink noise)
  • High sensitivity: up to 99 dB, 1 watt @ 1 meter (500 to 5,000 Hz)
  • Stack up to four units for improved coverage control
  • Lightweight polypropylene construction
  • White Color
  • Parallel connectors - dual Speakon and screw terminal
  • Vertical or horizontal mounting
  • Built-in surface-mount bracket
  • Hardware included for flying / suspension
  • Optional wall, ceiling and stand-mount hardware
  • Optional bracket for joining multiples into one array
  • Compatible with Omnimount 60 Series mounting hardware
  • Optional subwoofer, model FB-120
  • Optional 70 volt transformer, model MT-200
Matching Transformer 200W
TOA MT200 Matching Transformer 200W
70 V transformer for HX-5 speakers.
In Stock
132.39 163.83 19
In Stock
Free Shipping Available
Bracket Mount Pre-Install White
TOA HYPF1W Bracket Mount Pre-Install White
Pre-install bracket mount, white.
In Stock
118.99 147.25 19
In Stock
Subwoofer 12" 600W 8 ohm Subwoofer in White
TOA FB120W Subwoofer 12" 600W 8 ohm Subwoofer in White
Portable 600W subwoofer for the HX-5B, used for augmenting low frequency response. 12' cone woofer loudspeaker. Can be mounted on the floor or suspended from the ceiling. White.TOA FB120W Specifications: Power Handling Continuous pink ...
Usually ships in 7-14 business days.
Need it sooner? Call us!
434.39 537.55 19
Usually ships in 7-14 business days.
Need it sooner? Call us!
Ceiling Mount Bracket White
TOA HYCW1W Ceiling Mount Bracket White
Ceiling Mount Bracket White
Usually ships in 7-14 business days.
Need it sooner? Call us!
105.60 130.68 19
Usually ships in 7-14 business days.
Need it sooner? Call us!
Wall/Ceiling Mounting Bracket, white
TOA HYWM1W Wall/Ceiling Mounting Bracket, white
Ceiling/wall mounting bracket, white. For TOA speakers.
Usually ships in 7-14 business days.
Need it sooner? Call us!
50.57 62.58 19
Usually ships in 7-14 business days.
Need it sooner? Call us!
