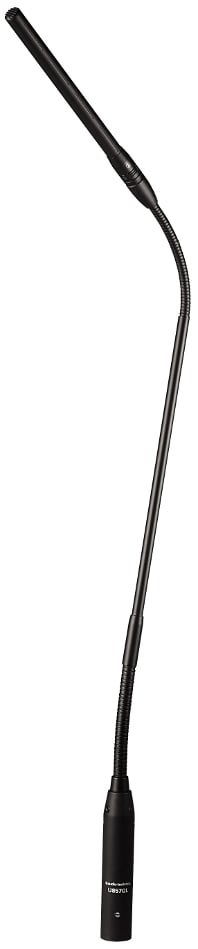

Audio-Technica U857QLU 23" Cardioid Condenser Gooseneck Microphone with Quick-Mount

Advanced capsule design and meticulous internal electronics.

The U857QLU UniLine® condenser mic combines an advanced capsule design with carefully engineered internal electronics to deliver clear, consistent sound for a variety of installed applications. The longer (23.74") version of the U857QU (19.17", sold separately), this quality mic is supplied with Audio-Technica’s interchangeable UniLine® line-cardioid element providing a narrow 90° acceptance angle. It's made to plug directly into a panel- or desk-mounted XLRF-type connector, and its ultra-flexible, robust gooseneck enables easy adjustment into the desired form while resisting inadvertent repositioning. Featuring UniGuard® innovations that offer unrivaled immunity from radio frequency interference (RFI), it accepts other interchangeable elements (sold separately) available in cardioid, hypercardioid and omnidirectional polar patterns. Additionally, it's a phantom-powered microphone that also comes with an 80Hz low-cut UniSteep® filter for reduced pickup of low-frequency (LF) ambient noise.

Applications

Conference centers • Boardrooms • Courtrooms • Houses of worship • Other installed applications, and more

Includes

• U857QLU UniPoint® microphone
• AT8154 two-stage foam windscreen
• AT8662 shock-mount

Features

• Works great for high-quality sound reinforcement, pro recording and broadcasting and more
• Superior off-axis rejection for maximum gain before feedback
• UniGuard RFI-shielding technology
• Easy-to-adjust, rugged, 23.74" alternating gooseneck
• UniSteep filter provides steep low-frequency attenuation
• Mountable in permanent installation on a lectern, pulpit, conference table or similar surface

Specifications

• Element: Fixed-charge back plate, permanently-polarized condenser
• Polar Pattern: Line-Cardioid (included UE-UL 90° UniLine line-cardioid element)
• Frequency Response: 30Hz - 20kHz
• Low Frequency Roll-Off: 80Hz, 18dB/octave
• Impedance: 250Ω
• Max Input Sound Level: 135dB SPL
• Dynamic Range (typical): 115dB
• Signal-to-Noise Ratio: 74dB
• Phantom Power Requirements: 11 - 52VDC
• Switch: Flat, roll-off
• Weight: 5.9oz (167g)
• Dimensions (L x head Dia x base Dia): 23.74" x 0.48" x 0.74" (603 x 12.2 x 18.9mm)
• Output Connector: Integral 3-pin XLR-M
• Optional Interchangeable Elements (sold separately): UE-C, cardioid (120°); UE-H, hypercardioid (100°); UE-O, omnidirectional (360°)
• Note: further information can be found within the items located under the "Documentation" tab above.
