TecNec OPH-H803
3-Way RF Splitter


Our Price: $11.57
List Price: $14.28
You save 19%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

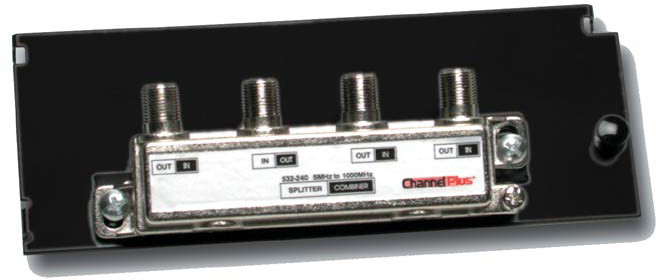

The TecNec Model H803 Splitter/Combiner Hub provides a grid mounted solution for distribution of television. CATV or antenna signals can be routed to three locations with the high quality on-board splitter. The splitter can alternately be used as a combiner to merge three inputs into one output.

TecNec OPH-H803 Features:

  • 3-way balanced designed
  • 6.5 dB insertion loss @ 1000 MHz
  • 5-1000 MHz bandwidth covers FM, cable modem, VHF and UHF bands
  • -130 dB RFI rejection
  • PCB design for consistent performance
  • Tilted 15√ł for easy connections
  • Return loss (IN and OUT) 20 dB minimum (all frequencies)
  • Isolation (OUT to OUT) 22-25 dB (all frequencies)
  • Six enclosure grid spaces
  • 6.25" x 1" x 2.75"
