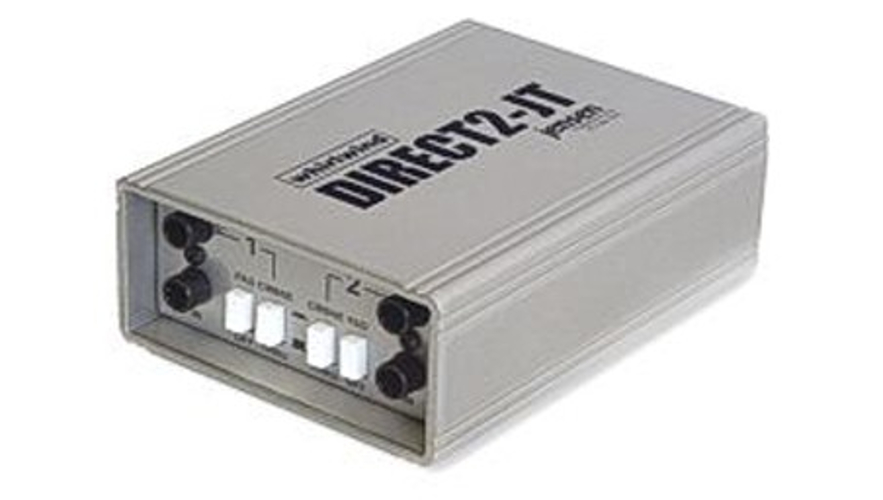

Whirlwind DIRECT2-JT
Direct Box 2ch with Jensen transformers

OUR PART #  DIRECT2-JT

Our Price: $321.00
List Price: $497.24
You save 35%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The DIRECT2-JT is Whirlwind's premium Dual Direct box, built with Jensen transformers.
Perfect for converting unbalanced signals from stereo keyboards, acoustic guitar preamps, CD and tape players, computer sound cards, etc. when lowest noise and widest frequency response are required.

Each section features:

  • 1/4" parallel wired IN / THRU jacks, or may be converted to dual inputs with handy COMBINE buttons.
  • -20dB pad button for connection to "hot" input signals
  • Ground lift button to help eliminate hum and buzz
  • Uses Jensen JT-DB-EPC transformers

The input and output grounds of each section are isolated from each other. This allows the DIRECT2-JT to be used as if it were two completely separate DIs without fear of creating ground loop interaction.

Model # - DIRECT2-JT
Impedance Ratio: 133:1
Frequency Response: 20Hz-20kHz re:1kHz, -0.08dB / -0.07dB
THD @ 20Hz: 0.036%
THD @ 1kHz: less than 0.001%
-3dB BW: 100kHz

Whirlwind DIRECT2-JT
Direct Box 2ch with Jensen transformers

OUR PART #  DIRECT2-JT

Product Information:

The DIRECT2-JT is Whirlwind's premium Dual Direct box, built with Jensen transformers.
Perfect for converting unbalanced signals from stereo keyboards, acoustic guitar preamps, CD and tape players, computer sound cards, etc. when lowest noise and widest frequency response are required.

Each section features:

  • 1/4" parallel wired IN / THRU jacks, or may be converted to dual inputs with handy COMBINE buttons.
  • -20dB pad button for connection to "hot" input signals
  • Ground lift button to help eliminate hum and buzz
  • Uses Jensen JT-DB-EPC transformers

The input and output grounds of each section are isolated from each other. This allows the DIRECT2-JT to be used as if it were two completely separate DIs without fear of creating ground loop interaction.

Model # - DIRECT2-JT
Impedance Ratio: 133:1
Frequency Response: 20Hz-20kHz re:1kHz, -0.08dB / -0.07dB
THD @ 20Hz: 0.036%
THD @ 1kHz: less than 0.001%
-3dB BW: 100kHz
