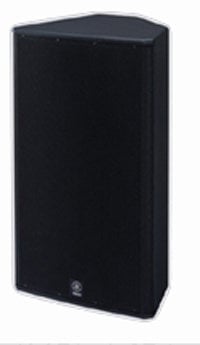

Yamaha IF2115AS
15" 2-Way Full Range Speaker

OUR PART #  IF2115AS

Call for info!


Recommended Accessories

Yamaha Installation Series Loudspeakers provide a wide range of models with seamlessly integrated hardware to meet the expectations of contractors and end-users for audio quality, ease of installation, and system design. All models feature a phase differential of less than 90 at 2 kHz . This minimizes the reduction of sound level and unwanted coloration in the "overlapped" area when combining/arraying speakers. The overall effect on frequency response is held to a minimum, ensuring a consistent family sound of speakers.

Yamaha IF2115AS Features:

  • Ideal for medium to large-scale installations.
  • Uniform phase response throughout the entire series.
  • A wide selection of dispersion characteristics for long-range, short range, and long/short range use.
  • Standard U-bracket and array-frame hardware available for maximum installation convenience and efficiency.
  • Switchablesingle-amp and bi-amp drive modes.
  • Certified measurement and prediction EASE data
    • Including polar plots, CAD files, and DXF data.
  • Constructed of high strength premium 11-ply / 5/8" thick Finland Birch enclosures on most models.
  • Grilles have 63% transparency for better clarity of sound.
  • Speakers include a barrier-strip and NL4 Neutrik* with parallel connections.
  • Horns are manufactured from fiber-reinforced plastic to minimize unwanted resonance.
  • The entire line of speakers incorporates rotatable horns, when space consideration dictates the speakers' orientation.
  • High frequencydrivers featureone-piece titanium diaphragms formed to precision tolerances for high performance, endurance and superior sonic quality.

Yamaha IF2115AS Specifications:

  • Frequency Response: 60 Hz-20k Hz (Bi-ampmode)
  • Frequency Range: 45 Hz-20k Hz (Bi-ampmode)
  • Nominal Coverage: 60° - 100°x 60°
  • Power Rating: Passive – 600 W (EIA) ;Bi-Amp – LF: 700W (AES) HF: 80 W (AES)
  • Nominal Impedance: Passive – 8 ohms;Bi-Amp – LF: 8 ohms HF: 8 ohms
  • Sensitivity (1 W @ 1 m): Passive – 95 dBSPL; Bi-Amp – LF: 98 dB SPL HF: 108 dB SPL
  • Calculated Peak SPL: Passive – 131 dBSPL; Bi-Amp – LF: 132 dB SPL HF: 133 dB SPL
  • Calculated Continuous SPL: Passive – 125dB SPL; Bi-Amp: 126 dB SPL HF: 127 dB SPL
  • LF Component: 15" Woofer, 4" Voice Coil
  • HF Component:Rotatable Constant Directivity Horn, 1.4" exit, 3" Voice Coil Compression Driver
  • Dimensions: 30.3" H x 17.6" W x 14.7" D
  • Weight: 78 lbs.
  • Shape: Multi-Angle Wedge
  • Material: 5/8" 11-ply Finland Birch
  • Finish: Textured Black
  • Grill: 14 gauge powder coated perforated steel grilles, backed with acoustically transparent reticulated foam
  • Connectors: 2x Neutrik NL4 and barrier strip, wired in parallel
  • Suspension Points: 16x M10
  • Pole Mounts: One
  • Handle: Two
  • U-Bracket: UB2115(W)
Vertical Array Frame for IF2115 Speakers (Except AS Model), BlackYamaha VAF2-2115 Vertical Array Frame for IF2115 Speakers (Except AS Model), Black

The Yamaha VAF2-2115 is a vertical array frame for IF2115 speakers, black finish.

Call for price! Not available online.
