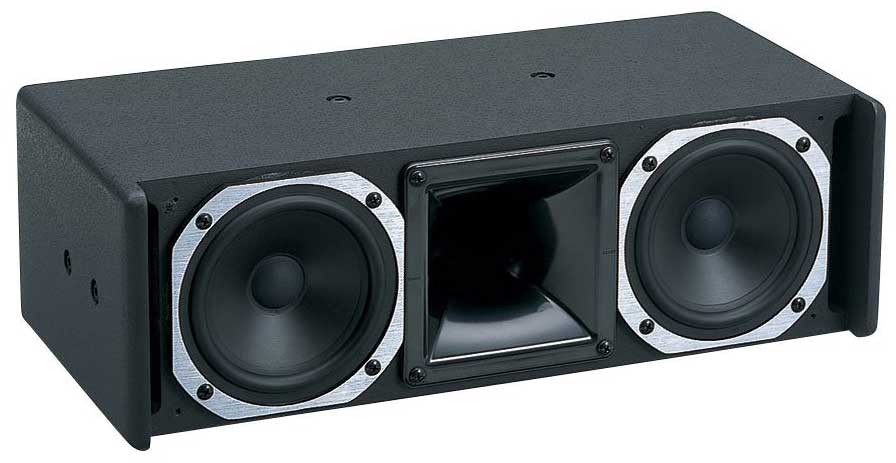

Yamaha IF2205
5" Two-Way Full Range Speaker

OUR PART #  IF2205

Call for info!


Recommended Accessories

Yamaha Installation Series Loudspeakers provide a wide range of models with seamlessly integrated hardware to meet the expectations of contractors and end-users for audio quality, ease of installation, and system design.  All models feature a phase differential of less than 90 at 2 kHz.  This minimizes the reduction of sound level and unwanted coloration in the "overlapped" area when combining/arraying speakers.  The overall effect on frequency response is held to a minimum, ensuring a consistent family sound of speakers.

Yamaha IF2005 Features:

  • Ideal for medium to large-scale installations.
  • Uniform phase response throughout the entire series.
  • A wide selection of dispersion characteristics for long-range, short range, and long/short range use.
  • Standard U-bracket and array-frame hardware available for maximum installation convenience and efficiency.
  • Switchablesingle-amp and bi-amp drive modes.
  • Certifiedmeasurement and prediction EASE data. Including polar plots, CAD files, and DXF data.
  • Constructed of high strength premium 11-ply / 5/8" thick Finland Birch enclosures on most models.
  • Grilles have 63% transparency for better clarity of sound.
  • Speakers include a barrier-strip and NL4 Neutrik with parallel connections.
  • Horns are manufactured from fiber-reinforced plastic to minimize unwanted resonance.
  • The entire line of speakers incorporates rotatable horns, when space consideration dictates the speakers orientation.
  • High frequencydrivers feature one-piece titanium diaphragms formed to precision tolerances for high performance ,endurance and superior sonic quality.

Yamaha IF2205 Specifications:

  • Frequency Response: 85 Hz-18 kHz
  • Frequency Range: 65 Hz-19 kHz
  • Nominal Coverage: 90° x 60°
  • Power Rating: 100 W (EIA)
  • Nominal Impedance: 8 ohms
  • Sensitivity (1 W @ 1 m): 91 dB SPL
  • Calculated Peak SPL: 115 dB
  • Calculated Continuous SPL: 109 dB
  • LF Component: 2x 5" Woofer, 1" Voice Coil
  • HF Component: Rotatable Constant Directivity Horn, 1" exit, 1" Voice Coil Compression Driver
  • Dimensions: 5.8" H x 18" W x8.7" D
  • Weight: 17 lbs
  • Shape: Rectangular
  • Material: 1/2inch (12mm), 9-ply Finland Birch
  • Finish: Textured Black
  • Grill: 14 gauge powder coated perforated steel backed with acoustically transparent reticulated foam
  • Connectors: Barrier Strip
  • Suspension Points: 6x M8, 2x M6
  • U-Bracket: UB2205(W)
Wall Mount Bracket for IF2208 and IF2205 SpeakersYamaha BWS251-300 Wall Mount Bracket for IF2208 and IF2205 Speakers

Yamaha's BWS251-300 is a wall mount bracket designed for the IF2208 and IF2205 speaker systems.Compatible Yamaha Speakers: IF2208IF2205CBR15CBR12CBR10DBR15DBR12DBR10MSR400MSR250MSR100C112VA Yamaha BWS251-300 Specifications: Net Weight: ...

In Stock

Free Shipping Available

Our Price:$135.00List Price: $190.00You save 29%!

Ceiling BracketYamaha BCS251 Ceiling Bracket

Model: BCS251Net weight: 2.3kg; 5.1lbs / Load capability: 30kg; 66.2lbsApplicable for: CBR15, CBR12, CBR10, DBR15, DBR12, DBR10, MSR100, MSR400, MSR250, C112VA, IF2208, IF2108, IF2205

Call for price! Not available online.
