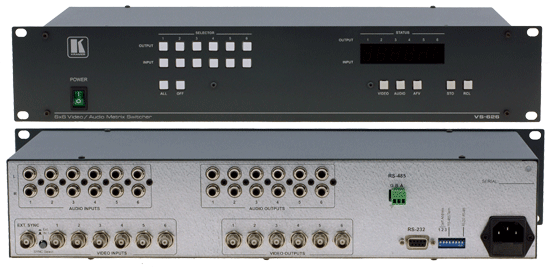

Kramer VS626
Composite Matrix 6x6, Stereo audio Switcher

OUR PART #:  VS626

The VS-626 is a high performance matrix switcher for composite video and unbalanced stereo audio signals.
Learn More
Our Price: $716.00
List Price: $895.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VS626
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The VS-626 is a high performance matrix switcher for composite video and unbalanced stereo audio signals. Switching during the vertical interval ensures glitch-free switching with genlocked sources.

Bandwidth - 100MHz (- 3dB) fully loaded.  Control - Front panel, RS-232 (K-Router™ Windows® - based Software is included),   RS-485.  Memory Locations - Store multiple switches as presets to be recalled and executed when needed.  Audio Breakaway Switching.  Vertical Interval Switching.  Switching Synchronization - Synchronize either to external reference or the incoming video.  Selectable Sync Signal Termination.  Standard 19” Rack Mount Size - 2U.

INPUTS:   6 composite video 1Vpp/75ohm on BNC connectors 1 sync/video genlock with sync select switch  6 audio stereo up to +4dBm/62kohm on RCA connectors   OUTPUTS:   6 composite video 1Vpp/75ohm on BNC connectors 6 audio stereo +4dBm/50ohm on RCA connectors   MAX. VIDEO OUTPUT LEVEL:   2 Vpp   MAX. AUDIO OUTPUT LEVEL:   +/-20Vpp   VIDEO BANDWIDTH (-3dB):   100MHz   AUDIO BANDWIDTH (-3dB):   100kHz   DIFF. GAIN:   0.05%   DIFF. PHASE:   0.03 Deg.   K-FACTOR:   < 0.05%   VIDEO S/N RATIO:   74dB   AUDIO S/N RATIO:   88 dB unweighted (1Vpp)   VIDEO CROSSTALK (all hostile):   -50 dB @ 5MHz   AUDIO CROSSTALK (all hostile):   –71.4dB@1kHz   CONTROLS:   Manual, RS-232 or RS-485   VIDEO COUPLING:   DC   AUDIO COUPLING:   AC   AUDIO THD + NOISE:   0.016% (1V, 1kHz)   AUDIO 2nd HARMONIC:   0.012%   POWER SOURCE:   230 VAC, 50/60 Hz (115 VAC, USA), 17VA   DIMENSIONS:   19 inch (W), 7 inch (D), 2U (H) rack mountable   WEIGHT:   3.4 kg. (7.5 lbs.) approx.   ACCESSORIES:   Power cord, Null modem adapter, Windows®-based control software
