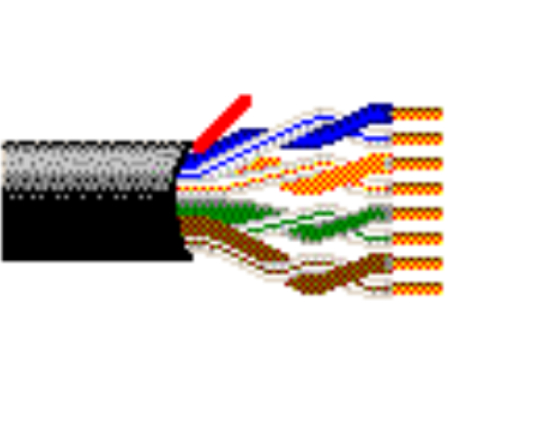

Belden 1583A-1000-GRAY
Wire Cat5 24awg 4pr 1000ft GRY

OUR PART #:  1583A-1000-GRAY

24 AWG solid bare copper conductors, non-plenum, Polyolefin insulation, twisted pairs, rip cord, see color code chart (below), PVC jacket (black, grey, light blue, or white).
Learn More

Call for price! Not available online.

Similar Products

24 AWG solid bare copper conductors, non-plenum, Polyolefin insulation, twisted pairs, rip cord, see color code chart (below), PVC jacket (black, grey, light blue, or white). Suitable applications: Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422.

Specifications:

  • Conductor:
         * Number of Pairs:4
         * Total Number of Conductors:8
         * AWG: 24
         *Stranding: Solid
         * Conductor Material: BC - BareCopper
  • Insulation Material: PO - Polyolefin
  • Outer Shield Material: Unshielded
  • Outer Jacket:
         * Outer Jacket Material: PVC -Polyvinyl Chloride
         * OuterJacket Ripcord: Yes
  • Overall Nominal Diameter: .195 in.
  • Mechanical Characteristics:
         * OperatingTemperature Range: -20°C To +75°C
         * Bulk CableWeight: 29 lbs/1000 ft.
         * Max. Recommended PullingTension: 35 lbs.
         * Min. Bend Radius (Install): 0.5in.
