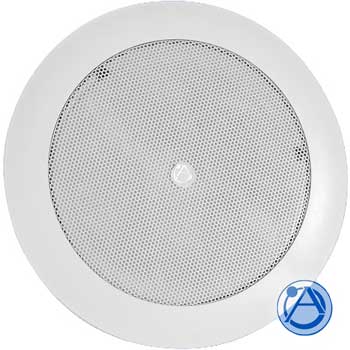

Atlas Sound DLS4
Loudspeaker 4" Tile Ceiling

OUR PART #:  DLS4

The DLS4 was specially designed for optimum use in low ceiling paging and background music applications where wide dispersion...
Learn More
Our Price: $50.99
List Price: $62.99
You save 19%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound DLS4
Qty:
In Stock
Similar Products

The DLS4 was specially designed for optimum use in low ceiling paging and background music applications where wide dispersion, high efficiency and ease of installation are required. The DLS4 is perfectly suited for use in airports, rail stations, retail stores and hospitality applications.

The system consists of 4" high efficiency driver. A unique (patent pending) tap selector switch design allows for easy system tuning. A full selection of taps up to 8 watts as well as an 8 ohm bypass setting is included for maximum system versatility. This switch "knob" also functions as a diffuser cone, providing smooth, even dispersion of the high frequency content from the center of the 4" driver. In fact, the high frequency response of the DLS4 is so natural that many would assume that the driver in the DLS4 was a coaxial design instead of a cone driver.

The easy to use DLS4 "dog leg" mounting system works with several popular Atlas Sound hardware combinations for use in new or existing drywall or acoustic ceilings with or without conduit! For mineral tile applications the popular FA81-4 tile bridge has been equipped to allow "twist lock" installation of the economical CS95-8.Suggested Mounting Hardware:Mineral Tile - no enclosure - FA81-4 Tile BridgeMineral Tile with enclosure - FA81-4, CS95-8Drywall Ceiling new construction - no enclosure - FA-TR4 Drywall Ceiling new construction - with enclosure - FA-TR4, E410NT The DLS4 will also retro-fit into existing E410 & E410-11enclosures. (Torsion tabs inside enclosure must be bent over internally to allow for complete clearance of the DLS4 dog leg mounting system)

8 inch Recessed Round Stacking Enclosure
Atlas Sound CS95-8 8 inch Recessed Round Stacking Enclosure
Ideal for contractors with limited storage facilities, the CS95-8 from Atlas Sound is a conically shaped enclosure nests to achieve reduced inventory space requirements and transportation costs. Furnished with four combination ...
9.99 11.99 17
In Stock
4" Tile Bridge for Strategy Speakers and Model DLS 4
Atlas Sound FA81-4 4" Tile Bridge for Strategy Speakers and Model DLS 4
Accepts both FA97-4 and FA95-4 enclosures and FAPR-4 plaster ring Constructed of 24 gauge electro-galvanized steel Prevents ceiling sag by distributing speaker assembly's weight across entire tile The Strategy Series™ tile bridge for 4" ...
10.99 13.99 21
