Product Overview

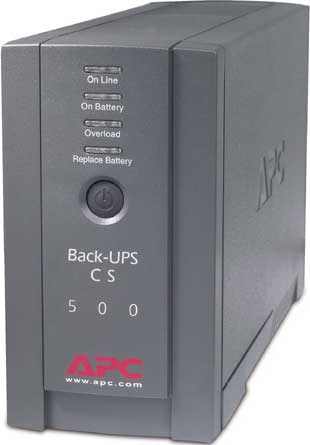

The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.
Includes:
- CD with software
- Cord Management Straps
- USB cable
- User Manual
Features
- Battery-protected and surge-only outlets: Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment
- Dataline Surge Protection: Provides protection of connected equipment from power surges on the data lines.
- Power conditioning: Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.
- Audible alarms: Provides notification of changing utility power and UPS conditions.
- Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power.
- Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Battery replacement without tools: Provides reduced risk of load disruption by allowing quick and easy battery replacement.
- LED status indicators: Quickly understand UPS status with indicators.
- Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Resettable circuit breakers: Enables quick recovery from UPS overload events.
- Transformer-block spaced outlets: Protect equipment with input transformer blocks without blocking access to other receptacles.
- User-replaceable batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Specifications
- Output Power Capacity: 300 Watts / 500 VA
- Max Configurable Power: 300 Watts / 500 VA
- Nominal Output Voltage: 120V
- Output Connections: (3) NEMA 5-15R (Battery Backup); (3) NEMA 5-15R (Surge Protection)
- Nominal Input Voltage: 120V
- Input Frequency: 50/60 Hz +/- 5 Hz (auto sensing)
- Input Connections: NEMA 5-15P
- Cord Length: 6 feet ( 1.83 meters)
- Input voltage range for main operations: 98 - 140V
- Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
- Typical recharge time: 8 hour(s)
- Replacement battery cartridge: CURK2, RBC2
- RBC™ Quantity: 1
- Typical Backup Time at Half Load: 11.7 minutes (150 Watts)
- Typical Backup Time at Full Load: 1.4 minutes (300 Watts)
- Interface Port: USB
- Control panel: LED status display with On Line : On Battery : Replace Battery and Overload indicators
- Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- Surge energy rating: 480 Joules
- Filtering: Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
- Dataline protection: RJ-11 Modem/Fax/DSL protection (two wire single line)
- Dimensions (H x W x D): 6.5" x 3.6" x 11.2"
- Weight: 13.8 lbs net, 15.3 lbs shipping
