TOA T-001T Dual-Line Output Expansion Module with DSP, Removable Terminal Block

OUR PART #: T001T MFR #: T-001T

Copied to clipboard

TOA's T-001T is a plug-in module designed for use with the 9000 Series amplifiers and can provide two independent balanced outputs. It can drive a load of 600Ω up to +16dB. ...Read more

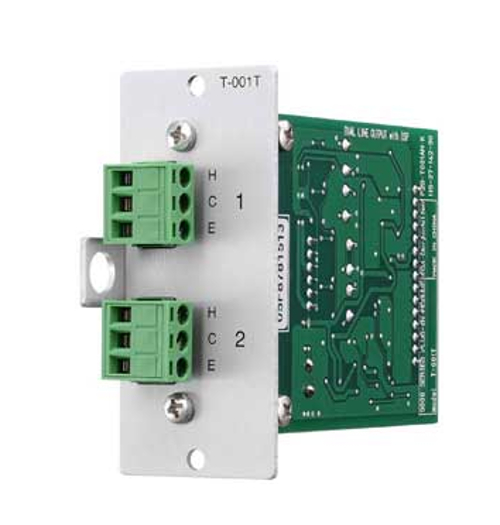

TOA T-001T Dual-Line Output Expansion Module With DSP, Removable Terminal Block Image 1
TOA T-001T Dual-Line Output Expansion Module With DSP, Removable Terminal Block
Our Price: $146.10
List Price: $180.80
You save 19%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

TOA's T-001T is a plug-in module designed for use with the 9000 Series amplifiers and can provide two independent balanced outputs. It can drive a load of 600Ω up to +16dB. It can process effect for TONE / EQ / COMPRESSOR to two outputs independently.

Includes:

  • Removable terminal plug (3 pins) x2
  • Module mounting screw x2

Features:

  • Two balanced line outputs
  • DSP including 10-band parametric EQ on each line output
  • Removable terminal block

Specifications:

  • Power Source: +24VDC, -24VDC, +6VDC
  • Current Consumption: 35mA (@ +24VDC), 35mA (@ -24VDC), 60mA (@ +6VDC)
  • Output 2 channels, max. +20dB* (@ 10kΩ load), 600Ω, electronically-balanced, removable terminal block (3 pins)
  • Frequency Response: 20Hz — 20kHz, +1, -3dB
  • Total Harmonic Distortion + N: 0.005% (@ 1kHz, 20Hz — 20kHz BPF, 5V output, 10kΩ load)
  • S / N Ratio: Over 73dB (@ 20Hz — 20kHz BPF)
  • Residual Noise: Under -91dB (@ 20Hz — 20kHz BPF. VOL: -70dB)
  • CrossTalk: Over 87dB (@ 20kHz)
  • D/A Converter: 24-bit ΔΣDAC
  • Sampling Frequency: 12dB (@ 100Hz)
  • Tone Control Buss: +/- 12dB (@ 100Hz)
  • Treble: +/- 12dB (@ 10kHz)
  • Parametric Equalizer: 10 bands, Frequency 20Hz - 20kHz, 31 points, Variable range: +/- 12dB, Q: 0.3 — -5
  • Speaker Equalizer: 10 (setup software has 30 TOA speaker presets)
  • High-pass Filter: -12dB / oct, Variable frequency range: 20Hz — 20kHz, 31 points
  • Low-pass Filter: -12dB / oct, Variable frequency range: 20Hz — 20kHz, 31 points
  • Compressor Depth: 1 — 5
  • Delay: 0 — 40ms (1ms step), maximum 40ms (CH 1 + CH 2), mixer mode only
  • Operating Temperature: -10°C to +40°C
  • Finish Panel: Aluminum, hair-Iine
  • Dimensions: 35mm (W) X 78mm (H) X 91.5mm (D)
  • Weight: 82g
