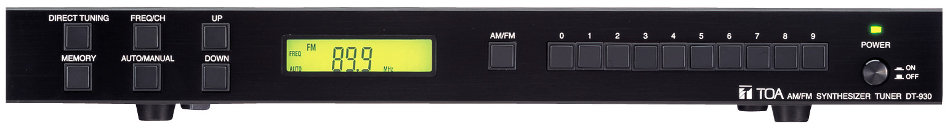

TOA DT-930
Frequency-Synthesized AM/FM Stereo Tuner with 40 Memory Presets

OUR PART #:  DT930

The TOA DT-930 AM/FM Tuner is a frequency-synthesized AM/FM stereo tuner designed to provide broadcast program material for background and foreground music systems.
Learn More
Our Price: $400.96
List Price: $496.19
You save 19%!
Write the first review.
TOA DT-930
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The TOA DT-930 AM/FM Tuner is a frequency-synthesized AM/FM stereo tuner designed to provide broadcast program material for background and foreground music systems. Featuring a clean, uncluttered look with easy and intuitive control, the DT-930 provides outstanding performance and sound quality with superb sensitivity and stability.

A large digital LCD display indicates radio station, memory preset, tuning mode and frequency band. The DT-930 offers 40 memory presets which can be divided as desired between AM and FM stations. The automatic up or down station scan control can be used to select the next preset or frequency. In addition, manual station tuning is also provided using the station up/down tuning bar. Both these tuning methods can be set independently for the AM and FM bands. Alternative selection methods include direct entry of a frequency or memory preset number.

For selecting stations without referring to any frequencies, the DT-930 provides an Automatic Preset Tuning (APT) function which automatically scans from the lowest frequency of the band selected. As it scans, it will automatically enter the first 20 stations it encounters for both the AM and FM bands. The result is automatic programming of all memory presets. Both mono and stereo line outputs are provided, each with an output level of –15dBV into loads of 10 kOhms or higher, optimum for driving the line inputs of TOA mixers and amplifiers. Included with the tuner is a 300 ohm FM dipole antenna, AM loop antenna and stereo RCA cable.

The DT-930 is UL listed and backed with a five year warranty.

TOA DT-930 Features:

  • High quality, commercial AM/FM tuner
  • Frequency synthesized digital tuning ensures reliable signal reception
  • Sensitivity Specification:
    • AM: 24dB microV (practical sensitivity)
    • FM: 4dB microV (IHF sensitivity)
  • Assignable presets for up to forty AM/FM stations
  • Multi-function LCD digital display
  • Automatic station scan (local or distant) mode
  • Automatic station storage to memory using scan mode
  • Manual station selection using up/down keys
  • Direct station frequency entry using numeric keys
  • Separate stereo (dual RCA) and mono (RCA and screw terminal) outputs
  • Stereo: dual RCA pin jacks
  • Mono: RCA pin jack and screw terminals
  • Includes FM and AM antennas plus stereo RCA cable (40")
  • Optional rack-mount kit, model MB-15B (1U)
  • Five year warranty

TOA DT-930 Specifications:

  • Power Source: 230V AC, 50 Hz (Supplied from theAC adapter (accessory))
  • Power Consumption: 180mA (when AC adapter (accessory) is used)
  • Receiving Frequency:
    • FM: 87.5 - 108.0 MHz (50 kHz step)
    • AM: 522 - 1626 kHz (9 kHz step)
  • Antenna Input:
    • FM: 300 Ohms (balanced), 75 Ohms (unbalanced)
    • AM: Loop antenna (balanced), external antenna (unbalanced)
  • Audio Output:
    • Stereo: -15dB, 10 kOhm, unbalanced, RCA jack
    • Mono: -15dB, 10 kOhm, unbalanced, M3 screw terminal, distance between barriers: 6.4mm, RCA jack
  • Channels of Memory: 40 channels in total for AM and FM broadcasts
  • Operating Temperature: 0°C to +40°C
  • Finish:
    • Panel: Aluminum (hair-line finish), black
    • Case: Pre-coated steel plate, black
  • Dimensions (WxHxD): 420mm x 53mm x 295mm
  • Weight: 2.8 kg
