Neumann BCM 705
Small Diaphragm Hypercardioid Dynamic Broadcast Microphone

OUR PART #:  BCM705

Emotion conveyed with technical perfection. This is the ideal which the Neumann microphones in the Broadcast Line have been designed to fulfill.
Learn More
Our Price: $699.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neumann BCM 705
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Emotion conveyed with technical perfection. This is the ideal which the Neumann microphones in the Broadcast Line have been designed to fulfill. The fine-tuning to the requirements of professional broadcast studios and the individual, functionally optimized design ensure that these are microphones of character.

The BCM 705 is Neumann’s first dynamic microphone. The housing and headgrille are identical to those of the BCM 104; only the green logo indicates that this is something new from Neumann. The principle of reduction to the essentials can be seen in the dynamic capsule with a hypercardioid directional characteristic, specifically designed for speech reproduction at close range. Multi-level isolation from structure-borne noise ensures operation free of interference, even in a lively studio environment.

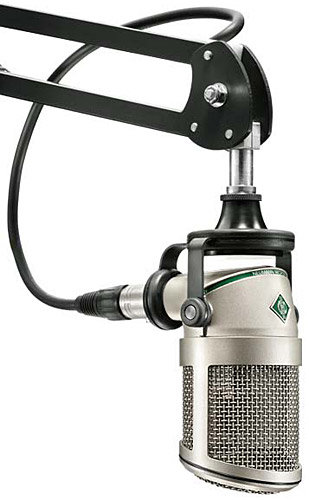

NOTE:  The boom stand and cable shown in the picture above do NOT come with purchase of the BCM 705 microphone.

Mechanical Features
The microphone headgrille twists off easily for quick cleaning. Neumann offers optional, color-coded headgrilles so that, for reasons of hygiene, each announcer can use his or her individual headgrille. In front of the capsule, mounted on a frame holder, a fine gauze serves as a built-in popscreen.

The microphones of the Broadcast Line have an elastic mount against structure-borne noise, that is compatible with standard broadcast-segment microphone arms.

Acoustic features
The frequency response has a light treble boost, in the region from 2 kHz to 9 kHz, aiding the speech intelligibility. The bass frequency response is designed to compensate for the overemphasis of the bass caused by the proximity effect.

The integrated Pop Screen
A pop screen not only prevents the occurrence of plosive pop noises in vocal recordings, but also efficiently prevents unwanted particles, from respiratory moisture, nicotine, to food remnants, from settling on the diaphragm. The pop screen can be removed for cleaning without the use of tools.

Mounting
The preferred mode of operation is to suspend the BCM 104 or BCM 705 from a standard studio boom arm.

A thread adapter to fit different connector threads is included. In order to provide protection from structure-borne noise, both the capsule and the microphone in its mount are elastically suspended.

The optional SG 5 swivel mount allows additional angling of the microphone by +/-90 degrees.

Features:

  • Dynamic capsule
  • Hypercardioid directional characteristic
  • Characteristic, functionally optimized design
  • Integrated, neutral pop protection
  • Integrated elastic suspension
  • Individual headgrilles for different users
  • Colored rings to identify the replacement headgrilles
  • Easy removal and cleaning of microphone headgrille (with bayonet mount)
  • Mechanical compatibility with standard studio boom arms
  • Multi-level isolation from structure-borne noise
  • No power supply required

Specifications:

  • Acoustical operating principle: Pressure gradient transducer
  • Directional pattern: Hypercardioid
  • Frequency range: 20 Hz - 20 kHz
  • Sensitivity at 1 kHz into 10 kohm: 1,7 mV/Pa = –55,4 dB ± 1 dB
  • Rated impedance: 200 ohms
  • Rated load impedance: >= 10,000 ohms
  • Equivalent SPL CCIR 468-3: 32 dB
  • Equivalent SPL DIN/IEC 651: 18 dB-A
  • S/N ratio CCIR 468-3: 62 dB
  • S/N ratio DIN/IEC 651: 76 dB
  • Weight: 500 g
  • Diameter: 64 mm
  • Length: 85 mm
  • Height (without suspension): 110 mm
