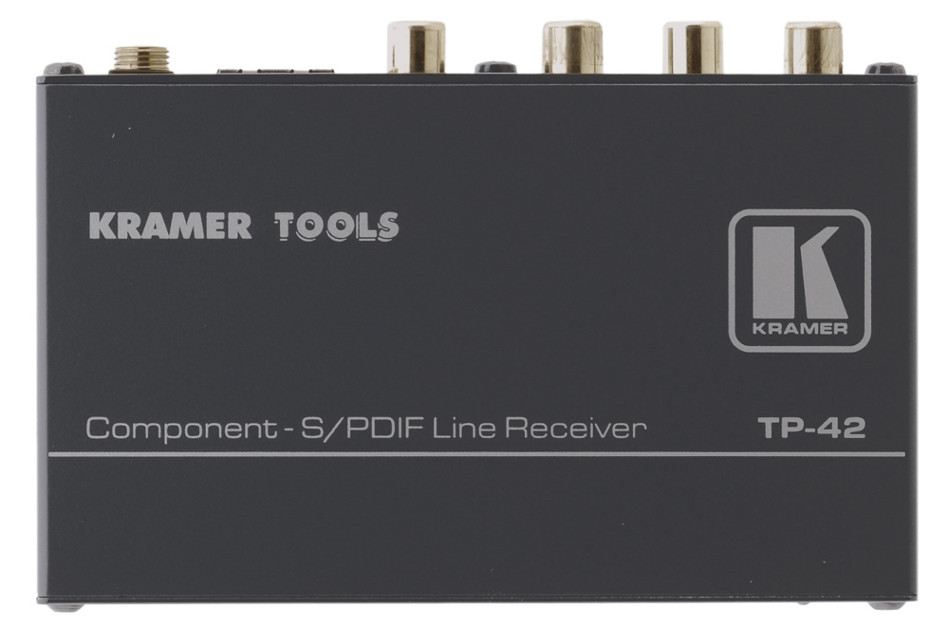

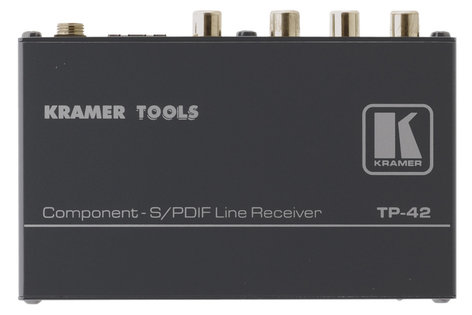

Kramer TP-42
Component S/PDIF Line Receiver

OUR PART #:  TP-42

The Kramer TP-41 (sold separately)  and TP-42 constitute a component - S/PDIF line transformer/receiver system.
Learn More
Our Price: $184.00
List Price: $230.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer TP-42
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Kramer TP-41 (sold separately) and TP-42 constitute a component - S/PDIF line transformer/receiver system. The combination is ideal for home cinema and DVD long range signal transmission. The TP-41 (the transmitter/encoder) includes an analog component video input (YUV) and a digital audio input (S/PDIF) on RCA connectors. The range of the CAT5 output to the TP-42 (the receiver/decoder) easily exceeds 100 meters (300 ft.). The TP-41 has individual level controls for the Y, U, and V signals, as well as audio level controls. The TP-42 receives the CAT5 signal, decodes it and outputs it to the YUV and S/PDIF RCA outputs. The TP-42 has individual level and EQ controls for the Y, U, and V signals, as well as level and EQ controls for audio. Each unit is housed in a small Kramer TOOLS enclosure, and is 12VDC fed.

Kramer TP-42 Features:

  • High quality home cinema long range signal distribution
  • Long distance studio component video and digital audio applications
  • Long range presentation applications

Kramer TP-42 Specifications

  • Inputs: 1 RJ-45 CAT-5 shielded connector (Line In)
  • Outputs: 1 set of component video (Y, U, V) on RCA connectors 1 S/PDIF (digital audio) on an RCA connector
  • Max. Output Level: Video: 2.1 Vpp
  • Bandwidth (-3dB): Video: 57MHz, fully loaded
  • Diff. Gain: 0.15%
  • Diff. Phase: 0.68 Deg.
  • K-Factor: 0.8%
  • S/N Ratio: Video: 78 dB
  • Crosstalk (all hostile): Video: -55dB
  • Controls: YUV level: -0.7dB to +0.8dB. YUV equalization: 0 to +7.5dB. S/PDIF level: -0.5dB to 1.2dB. S/PDIF equalization: 0 to +7.8dB
  • Coupling: DC
  • Power Source: 12VDC, 82mA
  • Dimensions (WxDxH): 4.7" x 2.95" x 0.98"
  • Weight: 0.67 lbs. (approx.)
  • Accessories: Power supply
