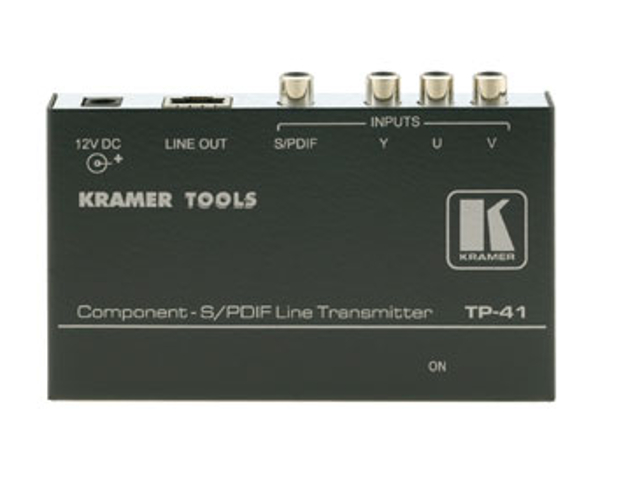

Kramer TP-41
Component S/PDIF Line Transmitter

OUR PART #:  TP-41

The Kramer TP-41 and TP-42 constitute a component - S/PDIF line transformer/receiver system. The combination is ideal for home cinema and DVD long range signal transmission.
Learn More
Our Price: $184.00
List Price: $230.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer TP-41
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Kramer TP-41 and TP-42 constitute a component - S/PDIF line transformer/receiver system. The combination is ideal for home cinema and DVD long range signal transmission. The TP-41 (the transmitter/encoder) includes an analog component video input (YUV) and a digital audio input (S/PDIF) on RCA connectors. The range of the CAT5 output to the TP-42 (the receiver/decoder) easily exceeds 100 meters (300 ft). The TP-41 has individual level controls for the Y, U, and V signals, as well as audio level controls. The TP-42 receives the CAT5 signal, decodes it and outputs it to the YUV and S/PDIF RCA outputs. The TP-42 has individual level and EQ controls for the Y, U, and V signals, as well as level and EQ controls for audio. Each unit is housed in a small Kramer TOOLS enclosure, and is 12VDC fed.

Kramer TP-41 Features:

  • High quality home cinema long range signaldistribution
  • Long distance studio component video and digitalaudio applications
  • Long range presentation applications

Kramer TP-41 Specifications:

  • Inputs: 1 set of component video (Y,U,V) on RCAconnectors. 1 S/PDIF (digital audio) on an RCA connector
  • Outputs: 1 RJ-45 CAT-5 shielded connector (Line Out)
  • Max. Output Level: Video: 2.1Vpp
  • Bandwidth (-3dB): Video: 57MHz, fully loaded
  • Diff. Gain: 0.15%
  • Diff. Phase: 0.68 Deg.
  • K-Factor: 0.8%
  • S/N Ratio: Video: 78dB
  • Crosstalk (all hostile): Video: -55dB
  • Controls: YUV level: -1.7dB to +0.7dB. S/PDIF level:-1.9dB to +0.4dB
  • Coupling: DC
  • Power Source: 12VDC, 95mA
  • Dimensions (W x D x H): 4.7" x 2.95" x 0.98"
  • Weight: 0.67 lbs approx.
  • Accessories: Power Supply
