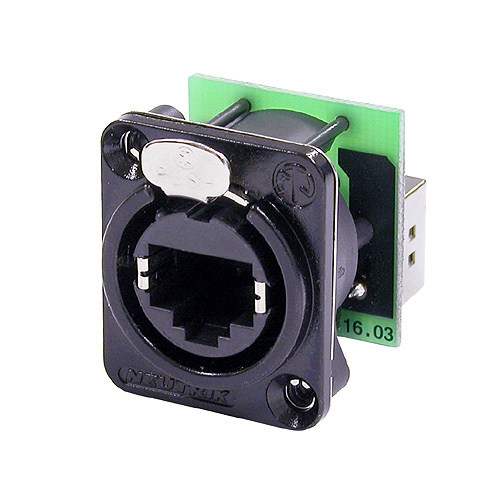

Neutrik NE8FDP-B
RJ45 Ethernet Female Panel Connector, Black

OUR PART #:  NE8FDP-B

The Neutrik NE8FDP-B is a RJ45 feedthrough receptacle with a black D-shape metal flange with the latch lock and mounting screws included.
Learn More
Our Price: $10.56
List Price: $13.74
Save up to 36% when you order by quantity!
  • Buy 25: $9.53 each.
  • Buy 50: $9.19 each.
  • Buy 100: $8.85 each.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NE8FDP-B
Qty:
Similar Products

The Neutrik NE8FDP-B is a RJ45 feedthrough receptacle with a black D-shape metal flange with the latch lock and mounting screws included.

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

Neutrik NE8FDP-B Features:

  • Accommodates NE8MC or any standard RJ45 plug
  • Approved latch lock system
  • Mountable from the front or rear of the panel
  • Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard

Neutrik NE8FDP-B Specifications:

  • Electrical:
    • Contact Resistance:  < 10 megohms (inner)
    • Dielectric Strength:  1 kVdc
    • Frequency Range:  1 - 100 MHz
    • Insulation Resistance:  > 0.5 Gigohms
    • Rated Current per Contact:  1.5 A
    • Rated Voltage:  < 50 V
    • Transmission Performance:  CAT 5e
    • Standard Compliance:  TIA/EIA 586B, IEC11801
  • Mechanical:
    • Insertion Force:  </= 20 N
    • Withdrawal Force:  </= 20 N
    • Lifetime:  > 1000 mating cycles
    • Panel Thickness:  max. 4 mm 0.16'
    • Wiring:  Feedthrough
    • Locking Device:  Latch lock
    • Chassis Shape:  D
  • Material:
    • Contact Plating:  0.2 µm Au over Ni plating
    • Contacts:  Bronze (CuSn8)
    • Insert:  PBTP 15 % GR
    • Shell:  Zinc diecast (ZnAl4Cu1)
    • Shell Plating:  Black chromium
  • Environmental:
    • Flammability:  UL 94 V-0
    • Temperature Range:  -30 °C to +80 °C
