Audio-Technica U851R
Cardioid Condenser Boundary Microphone, Non-Power Module Model

OUR PART #:  U851R

Featuring breakthrough audio and mechanical design innovations...
Learn More
Our Price: $219.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Audio-Technica U851R
In Stock

Similar Products

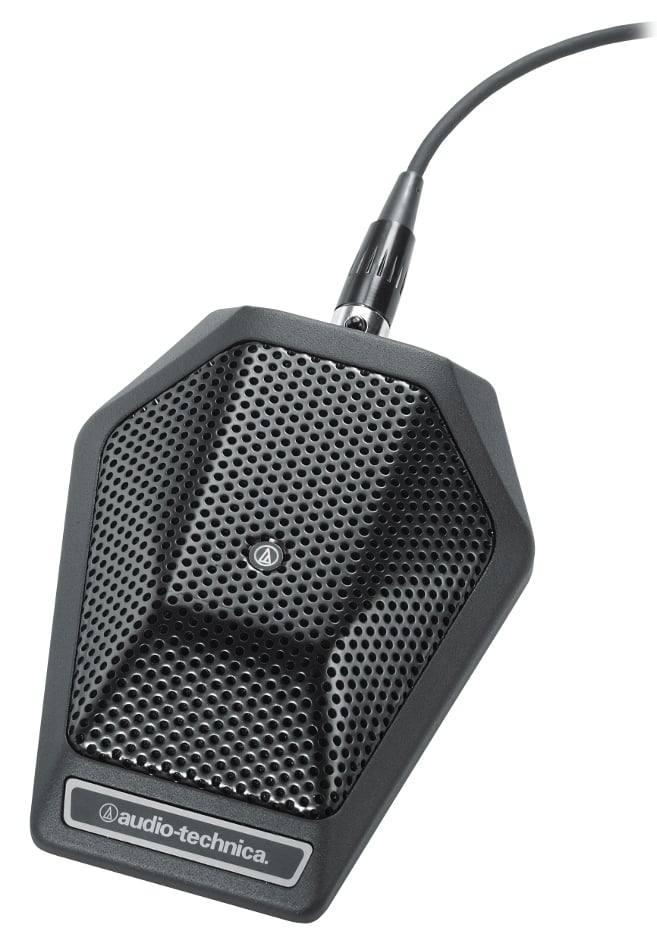

Featuring breakthrough audio and mechanical design innovations, the phantom-powered U851R offers outstanding speech intelligibility and transparent sound quality for surface-mount applications. The microphone is equipped with a PivotPoint rotating output connector, UniSteep filter and Uniguard RFI-shielding technology. It accepts interchangeable condenser elements - available for boundary microphones in cardioid, hypercardioid and omnidirectional polar patterns. With a heavy die-cast case and silicon foam bottom pads to minimize coupling of surface vibration to the microphone, the U851R is equipped with self-contained electronics, eliminating the need for an external power module.

Audio-Technica U851R Features:

  • Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations
  • PivotPoint rotating output connector allows cable to exit from either the rear or the bottom of the microphone
  • Superior off-axis rejection for maximum gain before feedback
  • UniGuard RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Self-contained electronics eliminate need for external power module
  • Small-diameter UniPoint capsule near boundary eliminates phase distortion and delivers clear, high-output performance
  • Heavy die-cast case and non-slip silicon foam bottom pads minimize coupling of surface vibration to the microphone
  • Low-profile design with low-reflectance black finish for minimum visibility

Audio-Technica U851R Specifications:

  • Element: Fixed-charge back plate, permanently polarized condenser
  • Polar Pattern: Half-cardioid (cardioid in hemisphere above mounting surface)
  • Frequency Response: 30-20,000 Hz
  • Low Frequency Roll-Off: 80Hz, 18dB/octave
  • Impedance: 200 ohms
  • Max Input Sound Level: 134 dB SPL
  • Dynamic Range (Typical): 108 dB
  • Signal-to-Noise Ratio: 68 dB
  • Phantom Power Requirements: 11-52V DC
  • Switch: Flat, roll-off
  • Weight: 9.2 oz
  • Dimesions (L x Max W x H): 4.25" x 3.31" x 0.91"
  • Output Connector: TB3M-type
  • Cable: 25' long, 0.13" diameter, 2-conductor, shielded cable with TA3F and XLRM-type connector
  • Optional Interchangeable Elements: UE-H hypercardioid (100┬░); UE-O omnidirectional (360┬░)
  • Furnished Accessories: Soft protective pouch
Omnidirectional Element for U851, U853, U857, U873R and U891 UniPoint Microphones
Audio-Technica UE-O Omnidirectional Element for U851, U853, U857, U873R and U891 UniPoint Microphones
Omnidirectional Element for UniPoint Microphones.  Compatible with U851, U853, U857, U873R and U891 models.
