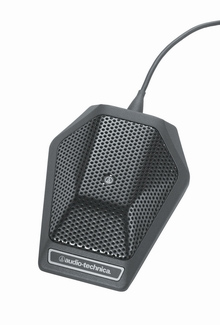

Audio-Technica U851A
Cardioid Condenser Boundary Microphone

OUR PART #:  U851A

Offering outstanding Audio-Technica sound for surface-mount applications, the U851A features a PivotPoint rotating output connector...
Learn More
Our Price: $269.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Audio-Technica U851A
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Offering outstanding Audio-Technica sound for surface-mount applications, the U851A features a PivotPoint rotating output connector, UniSteep filter and UniGuard RFI-shielding technology. This battery- or phantom-powered condenser microphone accepts interchangeable condenser elements - available for boundary microphones in cardioid, hypercardioid and omnidirectional polar patterns. Its heavy die-cast case and silicon foam bottom pads minimize coupling of surface vibration to the microphone. With superior off-axis rejection and maximum gain-before-feedback, this professional microphone sets audio-quality standards in challenging acoustic environments.

Features:

  • Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations
  • PivotPoint rotating output connector allows cable to exit from either the rear or the bottom of the microphone
  • Superior off-axis rejection for maximum gain before feedback
  • UniGuard RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • UniSteep filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
  • Small-diameter UniPoint capsule near boundary eliminates phase distortion and delivers clear, high-output performance
  • Heavy die-cast case and non-slip silicon foam bottom pads minimize coupling of surface vibration to the microphone
  • Low-profile design with low-reflectance black finish for minimum visibility
  • Operates on battery or phantom power

Specifications:

  • Element: Fixed-charge back plate, permanently polarized condenser
  • Polar Pattern: Half-cardioid (cardioid in hemisphere above mountingsurface)
  • Frequency Response: 30-20,000 Hz
  • Low Frequency Roll-Off: 80Hz, 18dB/octave
  • Impedance: 200 ohms (Phantom); 270 ohms (battery)
  • Max Input Sound Level: 133 dB SPL (Phantom); 123 dB SPL (battery)
  • Dynamic Range (Typical): 111 dB (Phantom); 101 dB (battery)
  • Signal-to-Noise Ratio: 72 dB
  • Phantom Power Requirements: 11-52V DC
  • Battery Type: 1.5V AA/UM3
  • Battery Current/Life: 0.4 mA/1200 hours typical (alkaline)
  • Switch: Off, on-flat, on-roll-off
  • Weight (microphone): 8.6 oz
  • Weight (power module): 4.9 oz
  • Dimesions (microphone, L x Max W x H): 4.25" x 3.31" x 0.91"
  • Dimensons (power module, H x W x D): 3.31" x 2.48" x 0.87"
  • Output Connector (power module): Integral 3-pin XLR-M
  • Cable: 25" long (permanently attached to microphone), 0.13" diameter,2-conductor, shielded cable with TA3F-type connector
  • Optional Interchangeable Elements: UE-H hypercardioid (100┬░); UE-Oomnidirectional (360┬░)
  • Furnished Accessories: battery; soft protective pouch
Omnidirectional Element for U851, U853, U857, U873R and U891 UniPoint Microphones
Audio-Technica UE-O Omnidirectional Element for U851, U853, U857, U873R and U891 UniPoint Microphones
Omnidirectional Element for UniPoint Microphones.  Compatible with U851, U853, U857, U873R and U891 models.
79.24 104.00 24

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
Replacement power module
Audio-Technica AT8531 Replacement power module
 Power module with on/off/roll-off switch and XLR-style output connector for the AT841A/ AT851A/ AT853A microphones.
72.97 99.00 26

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
