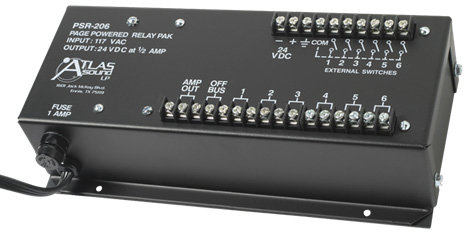

Atlas Sound PSR-206
6-Relay 24VDC 500mA Zone Page Powered Relay Pack

OUR PART #:  PSR206

Atlas Sound's PSR-206 is a zone page, powered relay-pack with an internal power supply.  The unit is completely wired and ready for mounting.
Learn More
Our Price: $509.99
List Price: $636.99
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound PSR-206
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Atlas Sound's PSR-206 is a zone page, powered relay-pack with an internal power supply.  The unit is completely wired and ready for mounting.  The power supply is capable of delivering 500 mA at 24 VDC.  A fuse is used for extra protection.  The output of the power supply is terminated at the terminal strip as well as internally to the relay coils.  This allows the use of excess power supply capacity for external relays.

Six 24 VDC, DPDT relays are pre-mounted and wired to the power supply.  The contacts are of silver, gold plated and the contact rating is 3 amps.  The coil current is a nominal 35mA.  The relays are wired and terminated.  The terminals are easily identified by a silkscreened diagram.  Any relay may be easily converted to an "all page" relay by connecting the off bus to the selected relay-switch output.  NOTE: Allows for 5 zones, plus "All Call", or 6 zones without "All Call".

The PSR-206 is completely enclosed in a compact 18-gauge CRS chassis finished in black epoxy.  It features a 6 ft. power cord.  It is designed to be used with Atlas Sound Model MPC Series modular paging communications center.

Features:

  • Capacity for additional external relays or lights
  • Easy conversion for all-page applications
  • Pre-mounted and wired to power supply

Specifications:

  • Input Power: 117 VAC, @ 60 Hz, 12 Watts
  • Output Power: 24 VDC .5 Amp
  • Relays: 6
  • Dimensions: 4" H x 13" W x 2" D (11.11 x 33.66 x 5.72 cm)
  • Shipping Weight: 5.00 lbs (2.27 kg)
  • Contact Rating: 3 amps
