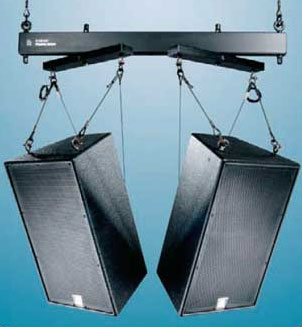

Adaptive Technologies Group SAS-2WA-66 Steerables 2-Way Speaker Rigging and Aiming System, 66", 500lb WLL

The Allen Products SAS-2WA-66 Two-Way-Array is an easy to fly, off the shelf loudspeaker aiming and suspension system. It forms simple two speaker clusters for small front-of-house applications and forms, left and right front-of-house clusters for larger venues.

The Two-Way-Array also serves as an excellent way to direct sound toward two levels such as at a balcony with one speaker and the floor level with the other speaker. Multiple vertical tiers of Two-Way-Array can accomplish the same for larger venues.

Ideal applications include theatres, churches, school auditoriums, gymnasiums and theme parks.

Multiple hole placements allow for many combinations of dead hangs, down tilts and pan angles, depending on the speicific sound coverage requirements for very precise aiming of sound.

Two-Way-Arrays can be coupled together horizontally forming wider arrays for more sound coverage. An optional pivoting coupler, the Gridlink connector, allows multiple Two-Way-Arrays to be coupled together.

The Two-Way-Array Suspension System can be outfitted with down tilt devices such as Allen Products'fixed width U-Series mounts and Steerables Tilt Cable Kits. These devices precisely and independently adjust the speaker's tilt angle without affecting the pan or tilt angles of other speaker cabinets in the cluster. This means no chasing of angles.

The Two-Way-Array Suspension System is produced from structural steel tubing and uses domestically load-rated suspension hardware to assure a strong and reliable installation.

Includes:

• 1 x 66" Suspension Beam
• 2 x Cross Arm
• 1 x Hardware Kit
• 1 set Load rated shackles and eyebolts

Features:

• Modular approach to 2 speaker arrays
• Independent pan and tilt adjustment
• Expandable horizontally and vertically
• Fast, predictable set up and aiming
• Ideal for permanent and live sound applications
• Off the shelf, ready-to-ship to the job site
• Load-rated structural steel tubing and fittings
• CG dependent, no chasing of angles

Specifications:

• Material: Structural steel alloy tube
• Finish: Powder coat
• Color: Black
• Design Factor: 10:1 ratio
• Length: 66.75"
• Weight: 40 lbs
• Beam WWL: 500 lbs
• Cross Arm Working Load Limit: 300 lbs
• Two-Way-Array max. Working Load Limit: 600 lbs
• Warning: Mounting and/or suspension of loudspeakers requires experienced professionals. Improperly installed loudspeakers can result in property damage, personal injury and/or liability to the installing contractor.
• Always use safety cables.
