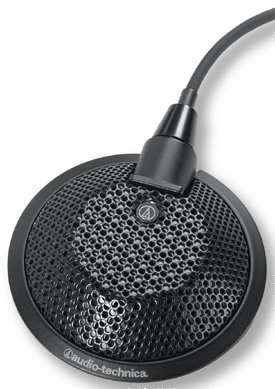

Audio-Technica U841A
Omnidirectional Condenser Boundary Microphone

OUR PART #:  U841A

The U841A delivers exceptionally intelligible audio reproduction in a super-compact, low-profile design.
Learn More
Our Price: $249.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Audio-Technica U841A
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The U841A delivers exceptionally intelligible audio reproduction in a super-compact, low-profile design. Equipped with UniGuard™ RFI-shielding technology, this omnidirectional condenser boundary microphone is designed for clear, highly intelligible sound reinforcement, professional recording, television and conferencing in surface-mount applications. The U841A has a 360° pickup angle and operates on battery or phantom power.

Features:

  • Designed for surface-mount applications such as high-quality soundreinforcement, professional recording, television, conferencing and otherdemanding sound pickup situations
  • UniGuard™ RFI-shielding technology offers outstanding rejection of radiofrequency interference (RFI)
  • UniSteep® filter provides a steep low-frequency attenuation to improvesound pickup without affecting voice quality
  • Small-diameter UniPoint capsule near boundary eliminates phase distortionand delivers clear, high-output performance
  • Heavy die-cast case and silicon foam bottom pad minimize coupling ofsurface vibration to the microphone
  • Low-profile design with low-reflectance black finish for minimumvisibility
  • Operates on battery or phantom power

Specifications

  • Element: Fixed-charge back plate permanently polarized condenser
  • Polar Pattern: Omnidirectional in hemisphere above mounting surface
  • Frequency Response: 30-20,000 Hz
  • Low Frequency Roll-Off: 80 Hz, 18 dB/octave
  • Open Circuit Sensitivity: Phantom: -39 dB (11.2 mV) re 1V at 1 Pa;Battery: -40 dB (10.0 mV) re 1V at 1 Pa
  • Impedance: Phantom: 200 ohms; Battery: 270 ohms
  • Maximum Input Sound Level: Phantom: 132 dB, 1 kHz at 1% T.H.D.; Battery:122 dB SPL, 1 kHz at 1% T.H.D.
  • Dynamic Range (typical): Phantom: 111 dB, 1 kHz at Max SPL; Battery: 101dB, 1 kHz at Max SPL
  • Signal-to-Noise Ratio: 73 dB, 1 kHz at 1 Pa
  • Phantom Power Requirements: 11-52V DC, 2 mA typical
  • Battery Type: 1.5V AA/UM3
  • Battery Current/Life: 0.4 mA/1200 hours typical (alkaline)
  • Switch: Off, on-flat, on-roll-off
  • Weight (microphone): 2.8 oz
  • Weight (power module): 4.9 oz
  • Dimensions (microphone): 2.56" diameter, 0.59" height
  • Dimensions (power module, H x W x D): 3.31" x 2.48" x 0.87"
  • Output Connector (power module): Integral 3-pin XLRM-type
  • Cable: 25' long (permanently attached to microphone), 0.13" diameter,2-conductor, shielded cable with TA3F-type connector
  • Accessories Furnished: AT8531 power module; battery; soft protectivepouch
Replacement power module
Audio-Technica AT8531 Replacement power module
 Power module with on/off/roll-off switch and XLR-style output connector for the AT841A/ AT851A/ AT853A microphones.
