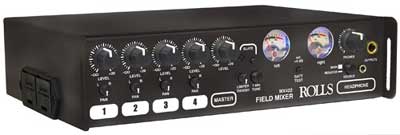

Rolls MX422
Field Mixer, Battery Operated

OUR PART #:  MX422

The MX422 is a four channel, microphone/line mixer with balanced XLR inputs and outputs. The unit is ideal for the broadcast and video markets.
Learn More
Our Price: $456.00
List Price: $600.00
You save 24%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Rolls MX422
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
The MX422 is a four channel, microphone/line mixer with balanced XLR inputs and outputs. The unit is ideal for the broadcast and video markets. It has the same features of other ENG/portable mixers without the extremely high price.


  • DV Field Production
  • Electronic News Gathering
  • Location Recording (Dialogue and Music)
  • Digital Recording
  • Broadcast Remotes
  • Desktop Mixing for Video Post Production


  • Four servo-balanced XLR Inputs
  • Two transformer-balanced XLR outputs
  • Switchable Output Level (Line level, or -30 dB pad)
  • 1/4" TRS Stereo Monitor Input and Auxiliary Input
  • Switchable 48 Volt Phantom Power for each input
  • Switchable 100 Hz Low Cut filters for each input
  • Main and Back-up battery compartments, never lose power
  • Level and Pan controls for each channel
  • Built in Limiter with variable Threshold control
  • 20Hz Slate tone with Slate Microphone included
  • Switchable 1kHz setup Tone
  • Calibrated VU meters
  • 1/4" and 3.5mm Headphone/Earphone Outputs with selectable Source Input (Main Mix or Monitor Input), and Level control
  • Canvas Case Included
  • Rolls PS27 external power supply included


  • Mic Input Impedance: 10k ohms XLR balanced
  • Source Input Impedance: 22k ohms RCA
  • Limiter Threshold: -5dB to off; Fully Clockwise: No Limiting
  • Setup Frequency: 1kHz
  • Slate Frequency: 20Hz
  • Output Attenuator: -30 dB
  • Self Noise: -57 dB maximum; -90 dB typical
  • Max Gain: +65 dB
  • S/N Ratio: 115 dB
  • Frequency Response: 20Hz-30kHz, +0, -3dB
  • Low Cut: 100Hz
  • Trim Range: 0 to +38 dB
  • Max Input: 0 dBV
  • Current Draw: 45 mA with no Phantom Power or Signal
  • Phantom Power: +48 VDC
  • Connectors: 4 x Female XLR, 2 x Male XLR, 3 x 1/4", 1 x 1/8" (3.5mm), 1 Center Negative power jack
  • Power: 12VDC/200mA
  • Size (W x D x H): 9.5" x 7.25" x 2.375"
  • Weight: 4 lbs
