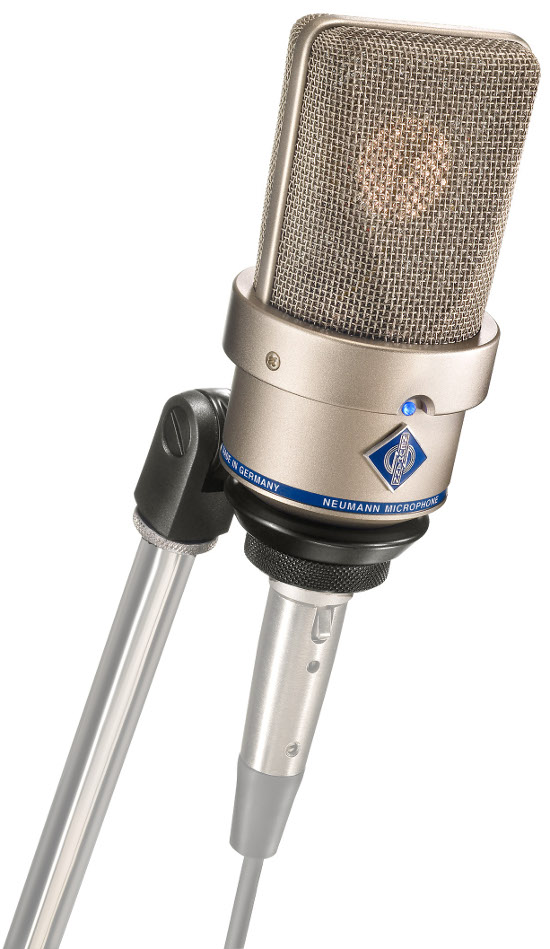

Neumann TLM 103
Large Diaphragm Cardioid Microphone in Satin Nickel Finish with SG1 Swivel Mount & Wood Box

OUR PART #:  TLM103-NICKEL

Neumann's TLM 103 is the ideal large diaphragm microphone for all professional and semi-professional applications requiring the utmost in sound quality on a limited budget.
Learn More
Our Price: $1,099.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neumann TLM 103
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Neumann's TLM 103 is the ideal large diaphragm microphone for all professional and semi-professional applications requiring the utmost in sound quality on a limited budget.

By utilizing the tried and true transformerless circuit found in numerous Neumann microphones, the TLM 103 features yet unattained low self-noise and the highest sound pressure level transmission.  The capsule, derived from that used in the U 87, has a cardioid pattern, is acoustically well-balanced and provides extraordinary attenuation of signals from the rear.

The TLM 103 comes with an SG 1 swivel mount and wood box.

Applications

Due to the universal cardioid pattern, straightforward handling, extremely low self-noise level, and finally, the price, the TLM 103 is predestined for all demanding applications from home recording to professional broadcasting and commercial recording studios.

Polar Pattern

The TLM 103 is equipped with a large diaphragm capsule with cardioid pattern.  By focusing on this pattern – used in most recording situations – the attenuation of unwanted rear sound has been optimized.  Off-axis sounds are rendered naturally while isolation is increased.  This also leads to a high feedback suppression when the microphone is used in live situations or where loudspeaker playback is a factor.

Acoustic Features

The TLM 103 is addressed from the front, marked with the red Neumann logo on the microphone body.  The K 103 large diaphragm capsule is based on the K 87, well known from the U 67 / U 87 microphones. The capsule has a flat frequency response up to about 5 kHz, and above that, a wide flat 4 dB presence boost.

The large wire mesh headgrille protects the capsule from plosive sounds and effectively prevents pop noises.  These characteristics are achieved without resorting to corrective resonance effects.

Therefore, the microphone maintains an excellent impulse response and reproduces the finest details of music and speech without coloration.

Electrical Features

With just 7 dB-A / 17.5 dB CCIR the self-noise level of the TLM 103 is so reduced that even the smallest signals are reproduced basically noise-free.  As it is capable of handling sound pressure levels up to 138 dB without distortion, the TLM 103 provides a dynamic range of 131 dB (A-weighted).

The letters TLM stand for "transformerless microphone".  With TLM technology the usual output transformer is replaced by an electronic circuit.  As with traditional transformers, it ensures good common mode rejection, and prevents RF interference that may influence the balanced audio signal.

Operational Safety

The entire internal construction is elastically mounted to attenuate any structure borne noise that could interfere with the TLM 103's operation.  Furthermore the capsule is set on an elastic mount.  The frequency range reaches below 20 Hz and thus even very low bass signals are reproduced without coloration.

Due to this low frequency extension, the TLM 103 is more sensitive to structure borne interference and wind noise.  For such cases, the windscreen WS 87 is available as an accessory.  For close vocal use, the PS 15 or PS 20 a pop screens are recommended.

Neumann TLM 103 Features:

  • Large diaphragm cardioid microphone
  • Pressure gradient transducer with with one-diaphragm capsule
  • Transformerless circuitry
  • Extremely low noise: 7 dB-A
  • Straightforward handling for home recording and professional studios

Neumann TLM 103 Specifications:

  • Acoustical operating principle:  Pressure gradient transducer
  • Directional pattern:  Cardioid
  • Frequency range:  20 Hz - 20 kHz
  • Sensitivity at 1 kHz into 1 kOhm:  23 mV/Pa
  • Rated impedance:  50 ohms
  • Rated load impedance:  1 kOhms
  • Equivalent noise level, CCIR*:  17.5 dB
  • Equivalent noise level, A-weighted*:  7 dB-A
  • Signal-to-noise ratio, CCIR* (rel. 94 dB SPL):  76.5 dB
  • Signal-to-noise ratio, A-weighted* (rel. 94 dB SPL):  87dB
    *According to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3,quasi peak; A-weighting according to IEC 61672-1, RMS
  • Maximum SPL for THD 0.5%**:  138 dB
    **Measured as equivalent el.input signal
  • Maximum output voltage:  13 dBu
  • Dynamic range of the microphone amplifier (A-weighted):  131 dB
  • Supply voltage (P48, IEC 61938):  48 V ± 4 V
  • Current consumption (P48, IEC 61938):  3 mA
  • Matching connector:  3-pin XLR-F
  • Weight:  approx. 450 g
  • Diameter:  60 mm
  • Length:  132 mm
