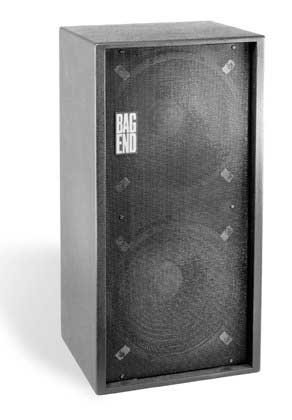

Bag End PD18E-R
Powered Subwoofer, 1,000W Continuous, 2 x 18", RO-TEX Finish, Casters

OUR PART #:  PD18E-R

The P-D18E-R is a very high output self-powered subwoofer system designed to provide high fidelity extended low frequency audio reproduction from a relatively small enclosure.
Learn More

Call for info!

Similar Products

The P-D18E-R is a very high output self-powered subwoofer system designed to provide high fidelity extended low frequency audio reproduction from a relatively small enclosure. The P-D18E-R provides perfectly flat response down to 8Hz when used in conjunction with the 8Hz Integrator. Designed foro permanent installation, the P-D18E-R offers a flat black textured finish and a black coated steel grille.

Specifications

  • Enclosure: 18mm 13-play birch plywood
  • Low Frequency Transducers:
    2 - 18" INFRA cone
    3" voice coil
    120 oz. magnet
  • Internal Amplification: 1 - Minima One
  • Grille: 16 gauge black vinyl coated perforated steel
  • System Type: 2 - Infrasub sealed chambers (3 ft each)
  • Input: 10k ohm Balanced XLR input with loop through
  • Input CAL Sensitivity: +4 dBu
  • System Power: 1000 W continuous
  • Frequency Response: 60Hz to 250Hz +/-3dB
    with External Infra Integrator: 8Hz to 95Hz +/-3dB
  • Hi-Pass Filter Frequency, Switchable: -6dB @ 8Hz, @ 50Hz, @ 95Hz
  • Crossover Network: Requires external INFRA Integrator for 8Hz response
  • Maximum Acoustic Output: Half Space @ 1 meter
    10Hz - 97 dBSPL
    20Hz -109 dBSPL
    40Hz - 121 dBSPL
    80Hz - 130 dBSPL
  • LED Indicators:
    Green, On
    Yellow, System Limit
    Red, System Fault or Sleep Mode
  • AC Power Requirements:
    88 Volts minimum
    270 Volta maximum
  • Finish: RO-TEX
  • Dimensions (H x W x D): 43" x 22" x 18"
  • Weight: 132 lbs
  • Shipping Dimensions: 20" x 45" x 25"
  • Shipping Weight: 144 lbs
