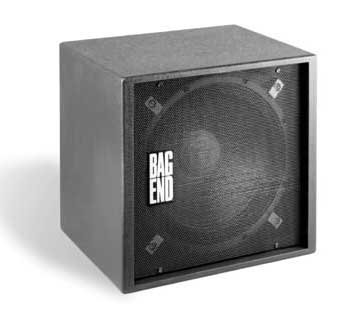

Bag End PS18E-R
Powered Subwoofer, 500W Continuous, 18", RO-TEX Finish

OUR PART #:  PS18E-R

The PS18E-R is a high output self-powered subwoofer system designed to provide high fidelity extended low frequency audio reproduction from a relatively small enclosure.
Learn More
Our Price: $1,805.00
List Price: $2,123.00
You save 15%!
Write the first review.
Bag End PS18E-R
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The PS18E-R is a high output self-powered subwoofer system designed to provide high fidelity extended low frequency audio reproduction from a relatively small enclosure. The PS18E-R provides perfectly flat response down to 8Hz when used in conjunction with the 8Hz Integrator.

Applications

  • Film & Video Post Production
  • 5.1 Digital Format Subwoofer
  • PA System Installations
  • Recording Studio
  • Mastering Facility
  • Home Theater
  • Discotheque

Specifications

  • Enclosure: 18mm 13-ply birch plywood
  • Low Frequency Transducer: 18" INFRA cone, 3" voice coil, 120 oz magnet
  • Internal Amplification: 1 - Minima One
  • Grille: 16 Gauge black vinyl coated perforated steel
  • System Type: Infrasub sealed chamber
  • Input: 10k ohm balanced XLR inputs with loop through
  • Input CAL Sensitivity: +4 dBu
  • System Power: 500W continuous
  • Frequency Response: 60Hz to 250 Hz +/-3dB
    With External Infra Integrator 8Hz to 95Hz +/-3dB
  • Hi Pass Filter Frequency Switchable: -6dB @ 8 Hz, @ 50Hz, @ 95Hz
  • Crossover Network: Requires external INFRA Integrator for 8Hz response
  • Maximum Acoustic Output: Half Space @ 1 meter
    10Hz - 94 dBSPL
    20Hz - 106 dBSPL
    40Hz - 118 dBSPL
    80Hz - 127 dBSPL
  • LED Indicators:
    Green, On
    Yellow, System Limit
    Red, System Fault or Sleep Mode
  • AC Power Requirements:
    88 Volts Minimum
    270 Volts Maximum
  • Finish: RO-TEX
  • Dimensions (H x W x D): 21" x 22" x 18"
  • Weight: 69 lbs
  • Shipping Dimensions: 24" x 25" x 21"
  • Shipping Weight: 77 lbs
